04MJ-04MJ-04MJ-04MJ CROSS

Description & Features

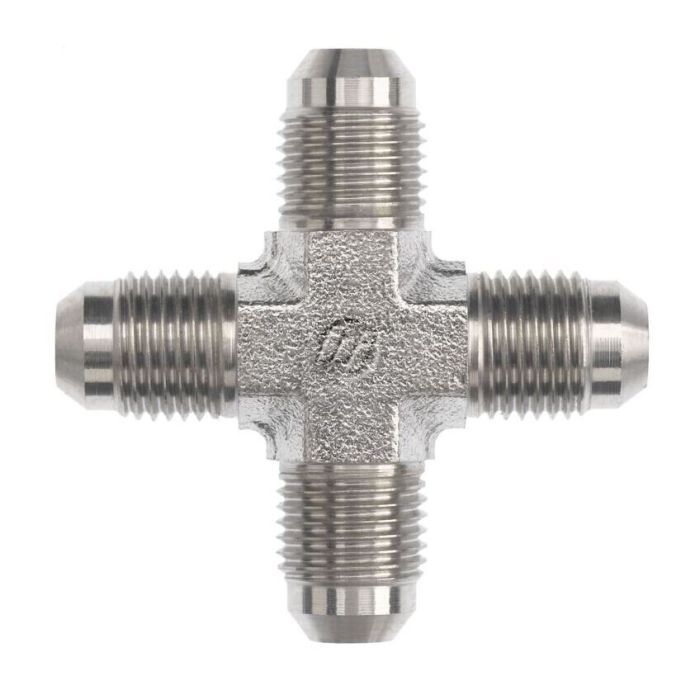

Forged steel construction gives this four-port cross fitting the structural integrity needed for demanding hydraulic line work. The 04MJ-04MJ-04MJ-04MJ Cross is manufactured from forged steel in Brennan Industries' 2650-FG series, with all four ports configured as Male JIC SAE 37-degree flare connections sized at 7/16-20, conforming to SAE J514. Equal centerline lengths of 0.890 inches on all four ports produce a balanced, symmetrical layout suitable for branching hydraulic circuits where uniform port spacing is required.

With an overall length of 1.780 inches in both axes, this compact cross fitting integrates cleanly into tight assemblies. The consistent thread size and specification across all ports simplifies line routing and reduces the need for additional adapters when distributing flow to multiple circuit branches.

California residents: This product is subject to Prop 65 warning requirements.

SKU: 2650-04-04-04-04-FG

Supplier Part Number (MPN): 2650-04-04-04-04-FG

Alternate Part Numbers: 2650-04-04-04-04, A2020-4-4S

Specifications

Brand Tompkins Industries Inc.	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2650-04-04-04-04-FG	Product Weight 0.10 lbs

Product Questions & Answers (2)

Question by: Duane E on Apr 9, 2025, 3:56 PM

got four hoses to tie together, are all four ends on this cross the same size and style?

Answer by: Customer Support on Apr 11, 2025, 6:35 AM

All four ports are identical on this cross. Each one is a Male JIC SAE 37 degree flare connection with 7/16-20 threads, built to SAE J514, so you are not mixing thread sizes or seat styles on different legs.

Question by: Brenda M on Mar 9, 2026, 7:39 AM

Will this cross fitting hold up if I'm running hydraulic fluid through it pretty much all day, every day?

Answer by: Customer Support on Mar 10, 2026, 6:17 PM

Forged steel gives this cross fitting the strength needed for continuous hydraulic line use.
