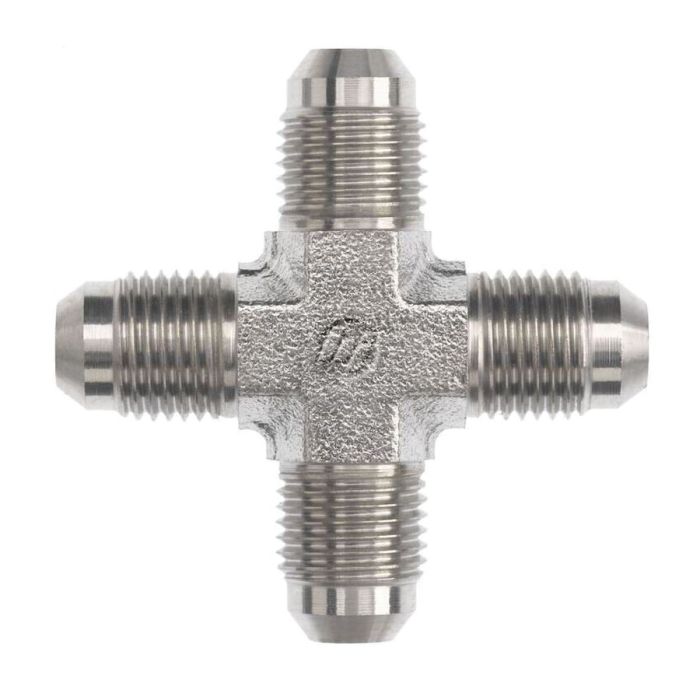

main product photo

4 male jic cross stainless steel

Ask A Question

Description & Features

This stainless steel cross fitting features four male JIC SAE 37-degree flare connections, each conforming to SAE J514 standards. Constructed from forged stainless steel, the 4 male jic cross stainless steel is part of the 2650-FG series.

With a centerline length of 0.890 mm and an overall length of 1.780 mm, each thread connection measures 7/16-20 in size with a 0.172 mm drill size.

SKU: 2650-04-04-04-04-SS

Supplier Part Number (MPN): 2650-04-04-04-04-SS

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare Union
Connection Type 2
Male SAE 37 deg JIC Flare Union
Connection Type 3
Male SAE 37 deg JIC Flare Union
Connection Type 4
Male SAE 37 deg JIC Flare Union
Dimension Standards
MS 51517, SAE J514
Dimensions
1.78 in H x 1.78 in W
Fitting Type
Cross
l2 Dimensions
1.78 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Series
2650-FG Series
Thread 2 Drill Dimensions
0.172 in
Thread 3 Drill Dimensions
0.172 in
Thread 4 Drill Dimensions
0.172 in
Thread B1 Drill Dimensions
0.172 in
Thread B2 Drill Dimensions
0.172 in
Thread Size
7/16-20

Product Questions & Answers (1)

Question by: Lyle B on Oct 30, 2025, 5:19 PM
What size are the threads on this cross?
Answer by: Customer Support on Nov 1, 2025, 9:58 AM
Each thread connection measures 7/16-20 in size.
