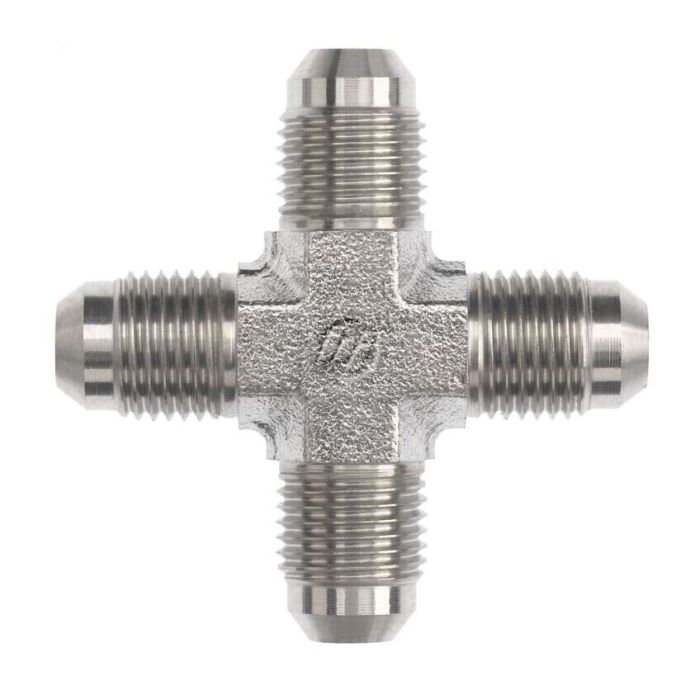

main product photo

06MJ-06MJ-06MJ-06MJ CROSS

Ask A Question

Description & Features

Constructed from durable forged steel, this fitting is designed to meet the demands of industrial hydraulic systems. The 06MJ-06MJ-06MJ-06MJ CROSS features a consistent centerline length of 1.060 mm across all connections, ensuring seamless integration into your system. Its overall length measures 2.120 mm, providing a compact yet robust solution for your hydraulic needs.

Each connection is equipped with a Male JIC SAE 37-degree flare, adhering to the SAE J514 specification. With a thread size of 9/16-18 across all ports, this cross fitting guarantees compatibility and reliable performance in high-pressure environments. Brennan Industries, known for quality and precision, ensures this product delivers longevity and efficiency in various industrial applications.

SKU: 2650-06-06-06-06-FG

Supplier Part Number (MPN): 2650-06-06-06-06-FG

Alternate Part Numbers: 2650-06-06-06-06, A2020-6-6S

Specifications

Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Size 3
3/8 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare Union
Connection Type 2
Male SAE 37 deg JIC Flare Union
Connection Type 3
Male SAE 37 deg JIC Flare Union
Connection Type 4
Male SAE 37 deg JIC Flare Union
Dimension Standards
MS 51517, SAE J514
Dimensions
2.12 in H x 2.12 in W
Finish
Trivalent Zinc-Plated
Fitting Type
Cross
l2 Dimensions
2.12 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Series
2650-FG Series
Thread 2 Drill Dimensions
0.297 in
Thread 3 Drill Dimensions
0.297 in
Thread 4 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.297 in
Thread Size
9/16-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Chad E on Nov 4, 2025, 5:13 PM
What kind of steel is this cross made from?
Answer by: Customer Support on Nov 5, 2025, 8:45 PM
Forged steel is the material used to construct this cross.
