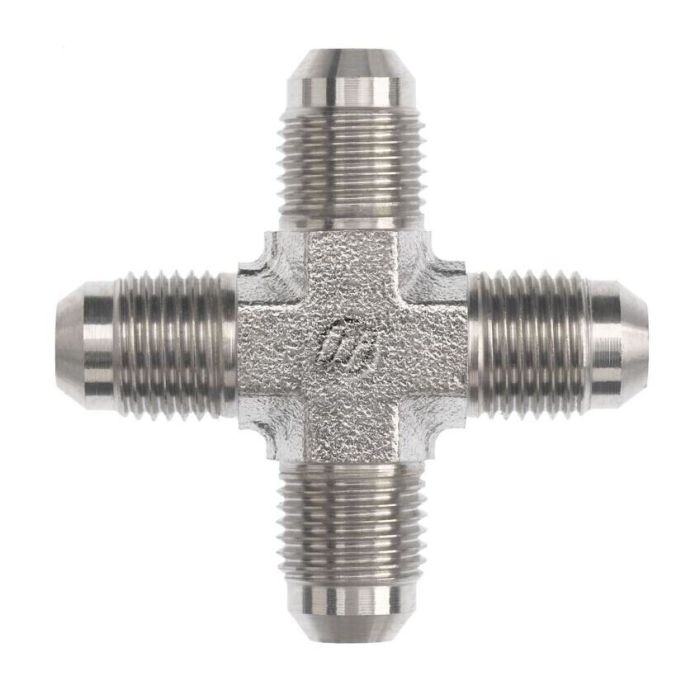

08MJ-08MJ-08MJ-08MJ CROSS FORGED

Ask A Question

Description & Features

This forged steel cross fitting features male JIC SAE 37-degree flare connections on all four ends, adhering to SAE J514 specifications. Each connection is size 3/4-16 with a 0.391 drill size. The 08MJ-08MJ-08MJ-08MJ CROSS FORGED is suitable for various hydraulic applications.

The fitting has a centerline length of 1.250 mm for each connection point and an overall length of 2.500 mm.

SKU: 2650-08-08-08-08-FG

Supplier Part Number (MPN): 2650-08-08-08-08-FG

Alternate Part Numbers: 2650-08-08-08-08, A2020-8-8S

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Size 3
1/2 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare Union
Connection Type 2
Male SAE 37 deg JIC Flare Union
Connection Type 3
Male SAE 37 deg JIC Flare Union
Connection Type 4
Male SAE 37 deg JIC Flare Union
Dimension Standards
MS 51517, SAE J514
Dimensions
2-1/2 in H x 2-1/2 in W
Finish
Trivalent Zinc-Plated
Fitting Type
Cross
l2 Dimensions
2-1/2 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Series
2650-FG Series
Thread 2 Drill Dimensions
0.391 in
Thread 3 Drill Dimensions
0.391 in
Thread 4 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.391 in
Thread Size
3/4-16

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Kent E on Sep 10, 2025, 5:43 PM
What kind of material is this cross fitting made out of?
Answer by: Customer Support on Sep 12, 2025, 6:23 AM
This cross fitting is constructed from forged steel, ensuring durability for hydraulic applications.
