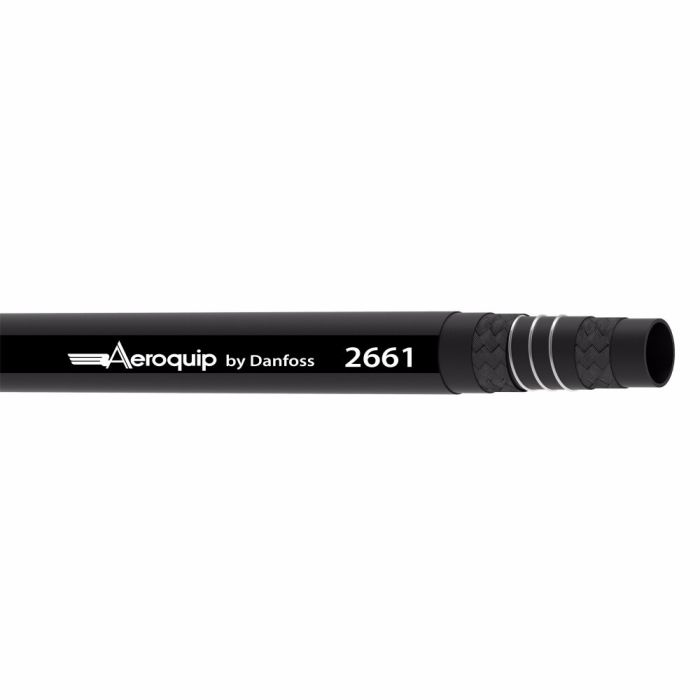

Wire InsertED Suction HSE

Description & Features

Rated for suction service across hydraulic systems, lubrication oils, gasoline, air, water, and chemical transfer lines, the Eaton Aeroquip Wire InsertED Suction HSE is built around a helical wire and textile reinforcement structure with a synthetic rubber tube and an elastomer cover. The 2-ply braid construction handles the mechanical demands of suction applications while maintaining flexibility at a minimum bend radius of 14 inches and a working temperature floor of -40°F.

Certified to SAE 100R4 and ABS standards, this hose carries Msha, Bureau Veritas, and USCG compliance approvals, making it appropriate for marine and industrial environments with strict safety requirements. The conductive construction supports static-dissipative installations. Compatible fittings include OTC, TTC, -40 and -48 crimps, and reusable nipple clamps. At dash size -40 and a rated impulse cycle life of 500,000 cycles, the hose is designed for sustained performance under demanding conditions. The embossed lay line and blue elastomer cover aid in field identification.

SKU: 2661-40

Supplier Part Number (MPN): 2661-40

Alternate Part Numbers: C1HH92

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1HH92	Application Suction application for hydraulic, lubrication oils, gasoline, air, water and chemical transfer.	Certifications ABS\|SAE 100R4	Color Blue	Compliances MSHA Approved\|Bureau Veritas\|USCG	Conductivity 30	Construction 2-ply braid	Cover Material Elastomer	Dash Size -40	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 14	Minimum Bend Radius 14	Minimum Working Temperature -40	Product Width 3.08	Qualified Hose Fittings OTC, TTC, -40,-48 Crimps, Reusable Nipple Clamps	Reinforcement Material Helical Wire and Textile	Sub Brand Aeroquip	Supplier Part Number 2661-40	Tube Material Synthetic Rubber	Product Weight 5.78 lbs

Product Questions & Answers (4)

Question by: Ray H on Nov 22, 2025, 6:04 PM

got a suction line that’s been kinking on me, how tight can you bend this 2661-40 hose?

Answer by: Customer Support on Nov 24, 2025, 6:29 AM

For the -40 dash size, the minimum bend radius is 14, so you want to keep your routing at or above that bend to help prevent kinks and restriction.

Question by: Bobby W on Aug 25, 2025, 10:33 AM

i need a suction hose that’ll pull hydraulic oil without collapsing, is this one meant for that?

Answer by: Customer Support on Aug 27, 2025, 6:19 AM

Built for suction service, this 2661 Series hose is intended for pulling hydraulic and lubrication oils, along with fluids like gasoline, air, water, and certain chemical transfer uses. The reinforcement uses helical wire and textile, which is a common setup for suction where you need the hose to hold its shape.

Question by: Rusty M on Jun 25, 2025, 4:37 PM

what all can this hose handle fluid-wise? asking cause we run a mix of hydraulic oil and sometimes gasoline through our lines depending on the setup

Answer by: Customer Support on Jun 27, 2025, 10:13 AM

Suction lines pulling hydraulic fluid, lubrication oils, gasoline, air, water, and certain chemical transfers are all within what this hose is built for. The tube is synthetic rubber and the cover is elastomer, so it holds up across that range without issue. Just make sure your fittings match the dash size, which on this one is a -40.

Question by: Kent J on Jun 14, 2025, 7:46 PM

Can this hose handle gasoline and oil, or is it just for water?

Answer by: Customer Support on Jun 16, 2025, 2:56 PM

Yes, this Aeroquip hose is designed for suction applications involving hydraulic and lubrication oils, gasoline, air, water, and even some chemical transfers.
