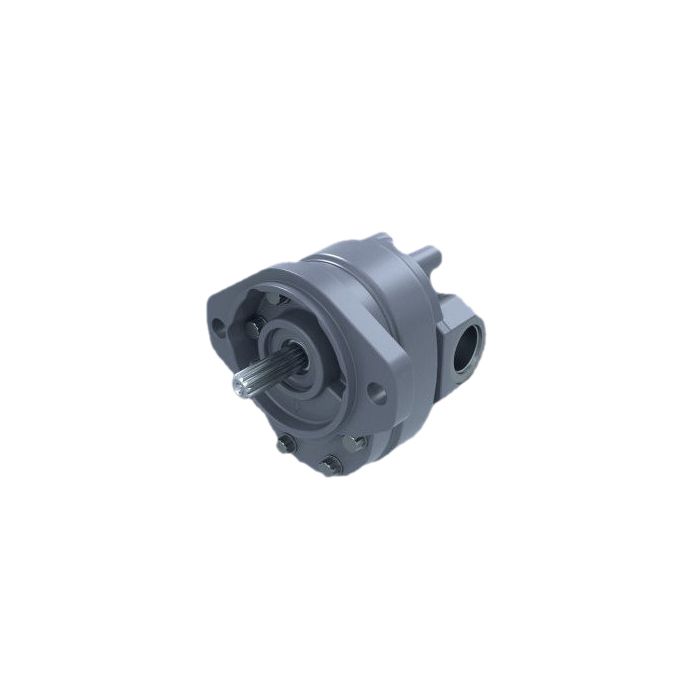

DANFOSS / EATON ADMAL03AAA01000000000A0A

Ask A Question

Description & Features

The DANFOSS / EATON ADMAL03AAA01000000000A0A Series 26 gear motor features a compact design for installation in tight spaces. This hydraulic motor delivers quiet and efficient performance for demanding applications.

Suitable for a range of hydraulic systems, this DANFOSS / EATON ADMAL03AAA01000000000A0A gear motor is designed for reliable operation even in cold environments, with a minimum working temperature of -20 degrees.

SKU: 26703-LSB

Supplier Part Number (MPN): 26703-LSB

Specifications

Color
Blue
Design Code
A
Dimensions
5.19 in L x 5.12 in W x 5.11 in H
Housing Material
Aluminum
Mounting Type
2-Bolt Flanged
nmfc
125820
Paint
Primer
Rotation Direction
Counterclockwise
Segment Code
B
Series
26 Series
Shaft Size
0.88 in Dia x 1.25 in L
Shaft Type
Splined

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Tommy C on Apr 16, 2025, 9:51 AM
motor's rated down to -20 degrees, but how's it gonna hold up if we're starting it cold in the middle of winter with fluid that's been sitting overnight?
Answer by: Customer Support on Apr 17, 2025, 2:39 PM
Cold starts are where a lot of gear motors struggle, and the -20 degree minimum working temperature on this one means it's built to handle exactly that kind of situation. Gear motors in this class are generally tolerant of thickened fluid at startup as long as you're within that rated range. If your overnight lows are staying above -20, you're working within spec and shouldn't see issues getting it moving even after a long sit.
