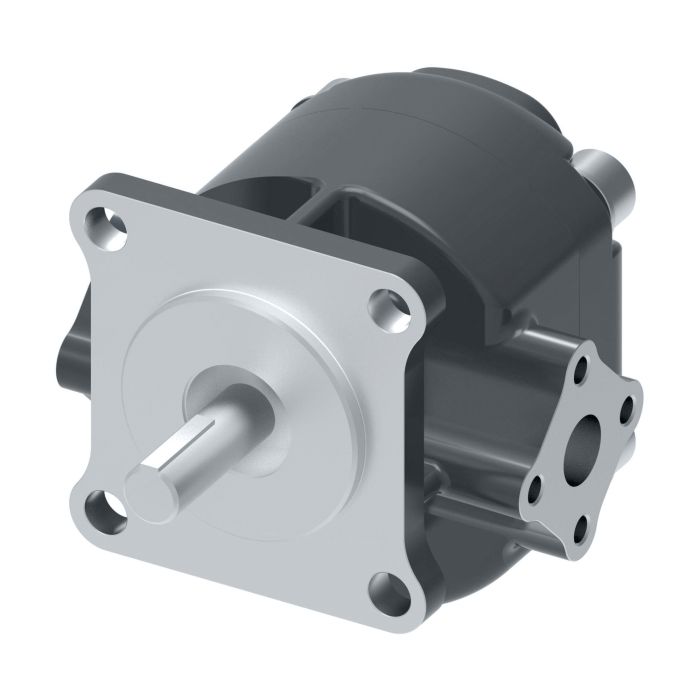

main product photo

DANFOSS / EATON ADMAD06ALA01AC0000000A0A

Ask A Question

Description & Features

Designed for hydraulic drive applications where space is a constraint, the Danfoss / Eaton ADMAD06ALA01AC0000000A0A is a Series 26 gear motor built to deliver reliable torque output with quiet, efficient performance. Its compact form factor makes it well suited for mobile and industrial equipment where packaging space is limited.

Manufactured under the Danfoss Power Solutions brand, this gear motor operates at a minimum working temperature of -20°C, supporting use in cold-climate environments. The unit measures 5.12 inches in width and is classified within the HS Gear Motors category. Key design characteristics include quiet operation and improved mechanical efficiency relative to comparable gear motor configurations.

SKU: 26706-DAB

Supplier Part Number (MPN): 26706-DAB

Specifications

Color
Blue
Design Code
A
Dimensions
6.57 in L x 5.12 in W x 5.11 in H
Housing Material
Aluminum
Mounting Type
2-Bolt Flanged
Paint
Primer
Port Location
Side
Port Type
UN-2B, SAE O-ring
Rotation Direction
Reversible
Series
26 Series
Shaft Size
0.625 in Dia x 2.31 in L
Shaft Type
Tapered Straight Keyed

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Billy L on Feb 18, 2026, 7:51 PM
Got a Series 26 gear motor that finally gave out on a piece of mobile equipment. This the one rated to run in cold weather or is it more of a fair-weather unit?
Answer by: Customer Support on Feb 20, 2026, 3:48 PM
Cold-weather operation is built into this motor. It carries a minimum working temperature rating of -20°C, so running it in freezing conditions is well within its design range. That makes it a solid fit for mobile equipment that sees real winter use rather than just climate-controlled shop environments.
