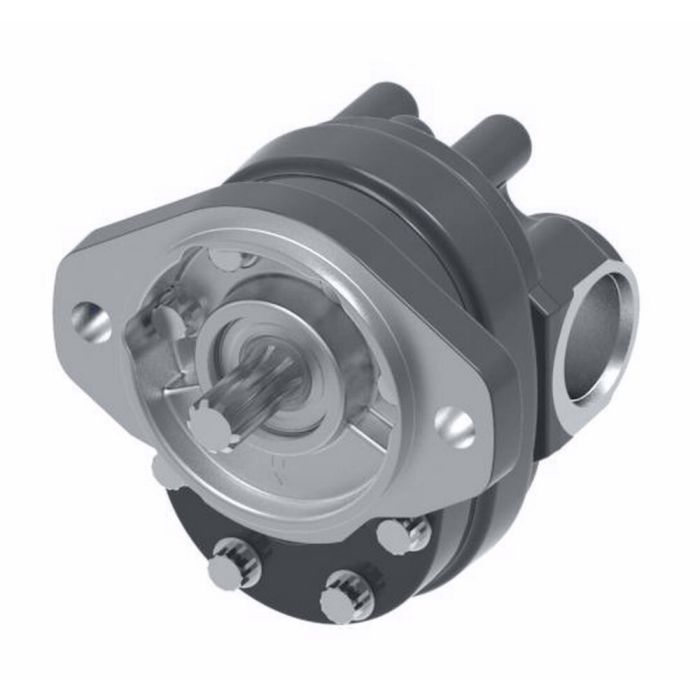

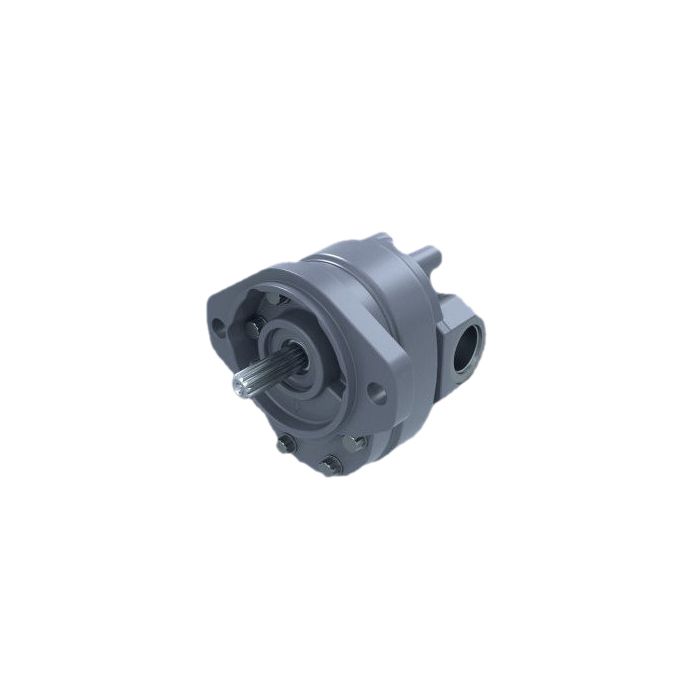

DANFOSS / EATON ADMAD07ALA01AC0000AF0A0A

Ask A Question

Description & Features

Designed for demanding fluid power applications, the Danfoss / Eaton ADMAD07ALA01AC0000AF0A0A is a Series 26 gear motor built to deliver reliable torque output in a compact form factor. Its low-profile design suits installations where space is limited, while a minimum operating temperature rating of -20°C supports use in cold-environment industrial settings.

Manufactured under the Eaton Char-Lynn brand, now marketed through Danfoss Power Solutions, this gear motor incorporates an improved trap design that actively reduces noise during operation. The 5.12-inch width keeps the unit manageable for tight mounting configurations, and the motor's construction reflects the efficiency standards associated with the Series 26 product family.

SKU: 26707-DAM

Supplier Part Number (MPN): 26707-DAM

Specifications

Color
Blue
Design Code
A
Dimensions
6.69 in L x 5.12 in W x 5.11 in H
Housing Material
Aluminum
Mounting Type
2-Bolt Flanged
Paint
Primer
Port Location
Side
Port Type
UN-2B, SAE O-ring
Rotation Direction
Reversible
Series
26 Series
Shaft Size
0.625 in Dia x 2.31 in L
Shaft Type
Tapered Straight Keyed

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Dustin B on Mar 24, 2025, 5:47 PM
runs pretty quiet compared to other gear motors i've used, or is that just marketing talk?
Answer by: Customer Support on Mar 26, 2025, 5:07 PM
Quiet operation is actually a listed feature on this unit, and the improved trap design specifically targets noise reduction. That's a mechanical improvement built into how the motor handles fluid, not just a general claim. If noise has been a problem with other gear motors on your equipment, this one was put together with that issue in mind.
Question by: Lance C on Sep 17, 2025, 7:25 AM
Reckon this Eaton Char-Lynn gear motor would hold up okay in a sawmill application? We're not talking constant use, but it'd see regular duty.
Answer by: Customer Support on Sep 18, 2025, 12:01 PM
Real-world usage for these Series 26 gear motors includes intermittent hydraulic power in industrial settings. The compact design and improved efficiency would be well-suited to a sawmill, but you'd want to ensure your duty cycles align with the motor's specs to prevent premature wear.
