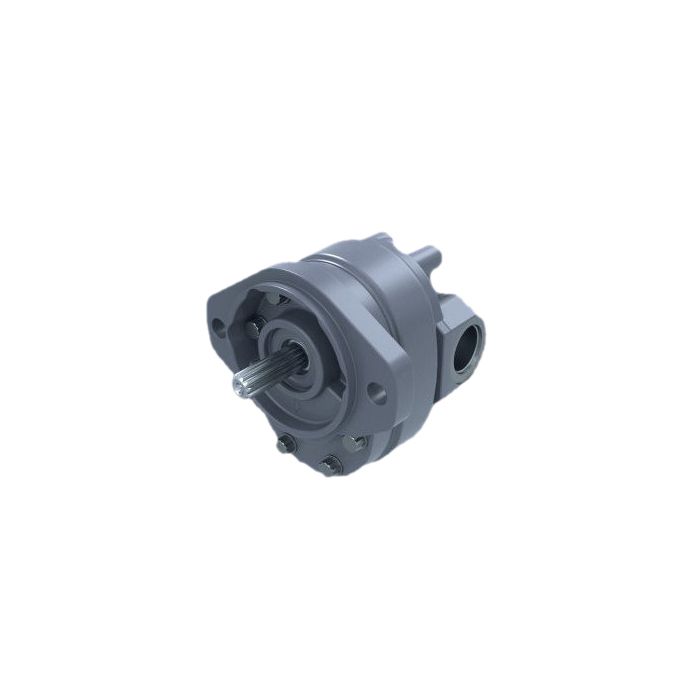

DANFOSS / EATON ADMAD08ALA01AA0000000A0A

Ask A Question

Description & Features

Designed for compact installation in mobile and industrial hydraulic circuits, this Series 26 gear motor from Danfoss Power Solutions delivers reliable rotary output with quiet operation and consistent efficiency. The DANFOSS / EATON ADMAD08ALA01AA0000000A0A is suited for hydraulic systems requiring a low-profile motor with a width of 5.12 inches and a minimum working temperature rating of -20°C, making it capable of cold-environment service.

Classified under high-speed gear motors, this unit features a compact form factor that supports integration into space-constrained equipment. Quiet operation and improved mechanical efficiency are core design characteristics, reducing energy loss and noise in demanding duty cycles.

SKU: 26708-DAE

Supplier Part Number (MPN): 26708-DAE

Specifications

Color
Blue
Design Code
A
Dimensions
6.82 in L x 5.12 in W x 5.11 in H
Housing Material
Aluminum
Mounting Type
2-Bolt Flanged
Paint
Primer
Port Location
Side
Port Type
UN-2B, SAE O-ring
Rotation Direction
Reversible
Series
26 Series
Shaft Size
0.625 in Dia x 2.31 in L
Shaft Type
Tapered Straight Keyed

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Rex B on Sep 25, 2025, 6:21 AM
Got a tight spot in a piece of equipment and need something that won't stick out too far, how wide is this motor?
Answer by: Customer Support on Sep 27, 2025, 8:52 AM
At 5.12 inches wide, it's built to fit in close quarters. That compact footprint is one of the main reasons this Series 26 unit gets picked for mobile and industrial setups where space is at a premium.
