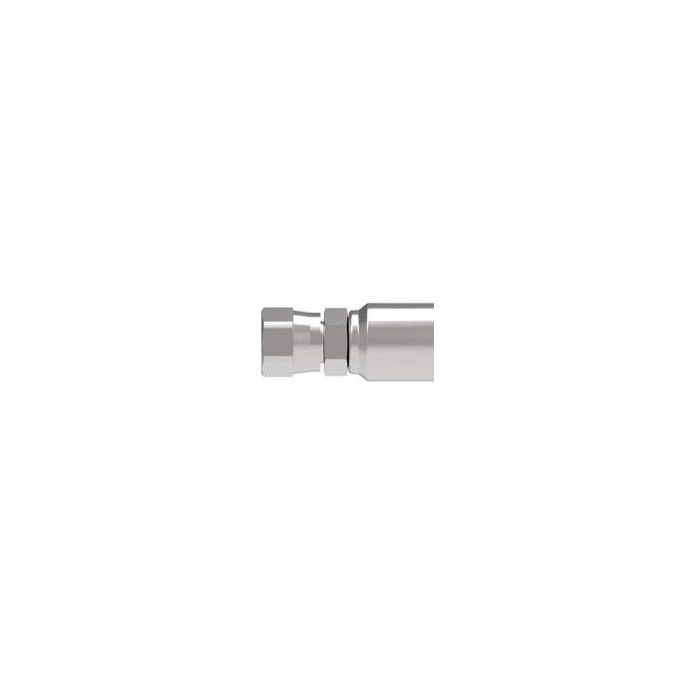

EW JIC FEMALE SWIVEL

Ask A Question

Description & Features

The Danfoss - Winner EW JIC Female Swivel is engineered for high-pressure high-reliability hydraulic systems suitable for mobile mining equipment shipyard primary metal wind power and various industrial markets. Featuring Dura-Kote plating this fitting offers superior corrosion resistance ensuring longevity and maximum uptime.

Its innovative design and system engineering extend the life of hose assemblies making it an essential component for demanding applications. Comprised of carbon steel it has an end size of 0.5625 inches with a JIC female end type and a line/hose/tube end type.

Supplier Part Number: 26711-06-04Z

MPN: 26711-06-04ZF

Specifications

Brand
Winner by Danfoss
Color
Silver
Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Cut-Off Factor
0.61 in
Dimensions
1.71 in L
End Gender 1
Female
End Size 1
9/16 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
EC115, EC215, EC110, EC210, EC118, EC082, WH004, WH005, WH006, WH007, EC426 and EC330 Series Hoses
Hex Size
3/4 in
Hose Dash Size
04
Material
Steel
Material Construction
Carbon Steel
Series
26711 Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18

Product Questions & Answers (1)

Question by: Eddie M on Dec 6, 2025, 2:42 PM
got a -4 hose end, is this the right swivel to hook into a JIC female?
Answer by: Customer Support on Dec 8, 2025, 7:44 AM
For a -4 hose setup, this fitting matches that dash size and uses a JIC female swivel on one end, with the other end intended for a line, hose, or tube connection.
