90*Din Bulkhead Union Complete

Ask A Question

Description & Features

Configured as a 90° elbow, this steel bulkhead union is designed for DIN tube connections on both sides, making it well suited for panel or bulkhead installations where a right-angle routing change is required. Both sides feature M24 x 1.5 male DIN tube fittings in size S16, providing a symmetrical, union-style configuration that simplifies assembly in confined or structured mounting arrangements.

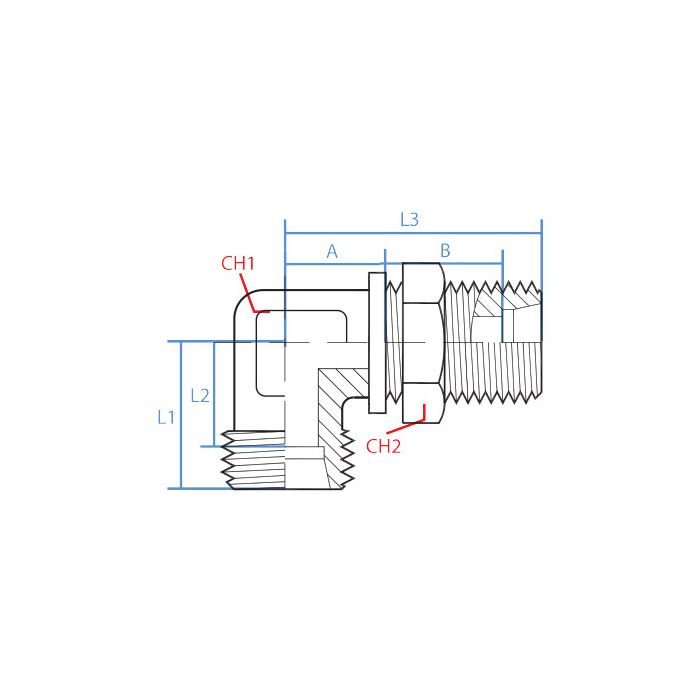

The 90*Din Bulkhead Union Complete is manufactured by Adaptall and constructed from steel for durability in demanding hydraulic service. Key dimensions include an overall length of 64mm, with individual segment lengths of 33mm and 24.5mm, and wrench flats of 27mm and 32mm across the two connection points. The 24mm and 31.5mm body measurements reflect the compact profile suited to bulkhead panel mounting.

SKU: 5042S-16C

Supplier Part Number (MPN): 5042S-16C

Specifications

Brand
adapt-all
a Dimensions
24 mm
b Dimensions
31.5 mm
Connection Size 1
S16
Connection Size 2
S16
Connection Type
Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male Metric DIN 24 deg Tube
Dimension Standards
DIN 2353, ISO 8434-1
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
5042 Series
Thread Size
M24x1.5

Product Questions & Answers (1)

Question by: Freddie S on Jun 22, 2025, 2:35 PM
both sides on this thing are M24 x 1.5 DIN tube, right? just want to make sure I ain't gotta mix two different fittings to make it work
Answer by: Customer Support on Jun 24, 2025, 7:17 AM
Correct on both counts. Each side is M24 x 1.5 male DIN tube in size S16, so the connection is fully symmetrical. No adapting or mixing required, which makes assembly a lot more straightforward when you're working in a tight panel setup.
