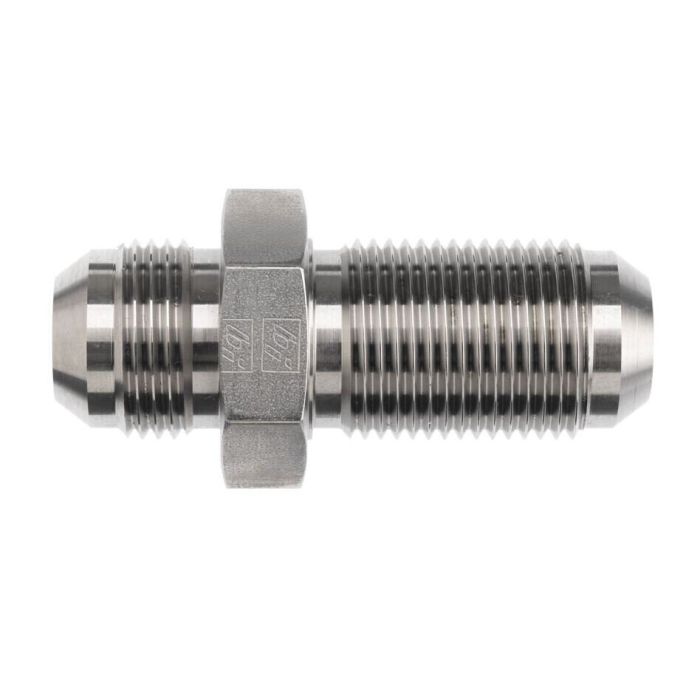

#5 MJIC BLKHD NO NUT

Description & Features

Configured as a straight bulkhead fitting without a nut, this steel JIC adapter is designed for panel or bulkhead mounting in hydraulic line assemblies. Both ends feature Male JIC SAE 37-degree flare threads in a 1/2-20 UNF configuration, conforming to SAE J514. The straight body construction keeps the fluid path unobstructed through the mounting surface, making it well suited for passing hydraulic lines through enclosures, reservoirs, or structural panels where a secure, leak-resistant connection is required.

The #5 MJIC BLKHD NO NUT is manufactured by Brennan Industries from straight steel with an overall length of 2.070 inches. California residents should note that this product is subject to Proposition 65 warnings per Brennan Industries' compliance designation.

SKU: 2700-05-05

Supplier Part Number (MPN): 2700-05-05

Specifications

Brand BRENNAN	Connection Size 1 5/16 in	Connection Size 2 5/16 in	Connection Type Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards MS 51520, SAE J514	Dimensions 2.07 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 3/4 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 6000 psi	Series 2700 Series	Thread 2 Drill Dimensions 0.234 in	Thread B1 Drill Dimensions 0.234 in	Thread Size 1/2-20

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
2700-03-03	3/16 in	3/16 in	3/8-24	5/8 in
2700-04-04	1/4 in	1/4 in	7/16-20	11/16 in
2700-04-06	1/4 in	3/8 in	9/16-18, 7/16-20	0.81 in
2700-06-04	3/8 in	1/4 in	9/16-18, 7/16-20	0.81 in
2700-06-06	3/8 in	3/8 in	9/16-18	0.81 in
2700-08-08	1/2 in	1/2 in	3/4-16	1 x 1 in
2700-10-10	5/8 in	5/8 in	7/8-14	1-1/8 in
2700-12-12	3/4 in	3/4 in	1-1/16-12	1-3/8 in
2700-14-14	7/8 in	7/8 in	1-3/16-12	1-1/2 in
2700-16-12	1 in	3/4 in	1-5/16-12 x 1-1/16-12	1-5/8
2700-16-16	1 in	1 in	1-5/16-12	1-5/8
2700-24-24	1-1/2 in	1-1/2 in	1-7/8-12	2-1/8 in
2700-32-32	2 in	2 in	2-1/2-12	2-3/4 in

Product Questions & Answers (1)

Question by: Jerry W on Oct 30, 2025, 12:33 PM

got a panel i need to pass a hydraulic line through, is this the kind of bulkhead fitting for that

Answer by: Customer Support on Nov 1, 2025, 8:48 AM

For running a hydraulic line through a wall or panel, this straight bulkhead adapter is a good match since it is meant for panel or bulkhead mounting and keeps a straight-through flow path across the mounting surface.
