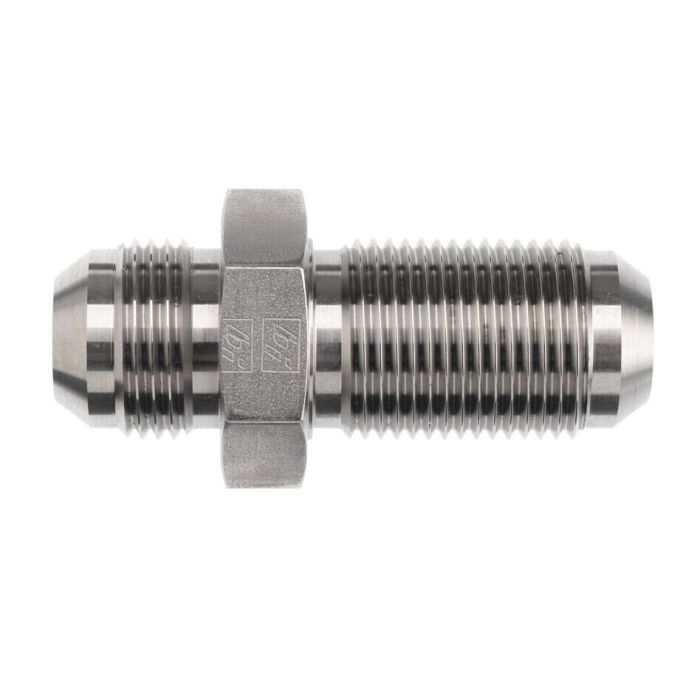

main product photo

06MJ-06MJ BULKHEAD STRAIGHT

Ask A Question

Description & Features

The 06MJ-06MJ Bulkhead Straight by Brennan Industries Inc. is a reliable solution designed with precision for industrial applications. This component, part of the 2700 Series, ensures secure connections under various conditions.

Constructed from straight steel, it features male JIC SAE 37-degree flare threads measuring 9/16-18, complying with SAE J514 specifications on both ends. The overall length of 2.180 mm guarantees a robust and enduring fit for your assembly needs.

This bulkhead fitting incorporates a consistent 0.297 mm drill size for both Thread B1 and Thread B2, offering uniformity and ease during installation.

Supplier Part Number: 2700-06-06

Specifications

Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
MS 51520, SAE J514
Dimensions
2.18 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.81 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Series
2700 Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.297 in
Thread Size
9/16-18

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Frank B on Mar 17, 2026, 1:02 PM
Just to be clear, both ends are the same size and threading, right?
Answer by: Customer Support on Mar 18, 2026, 4:53 PM
Correct, both ends of this bulkhead straight fitting feature 9/16-18 male JIC SAE 37-degree flare threads, conforming to SAE J514 specifications.
Question by: Sherry R on Aug 30, 2025, 10:33 AM
both ends on this fitting are male JIC, right? just want to make sure before I order -- got a panel I'm threading through and need male on each side
Answer by: Customer Support on Aug 31, 2025, 1:30 PM
Correct on both counts. Each end carries a 9/16-18 male JIC SAE 37-degree flare thread, so you'll get that same connection on either side of the bulkhead. Both threads are built to SAE J514, and the drill size runs 0.297 mm consistently across both ends. Should drop right into a panel mount situation where you need male JIC coming out each way.
