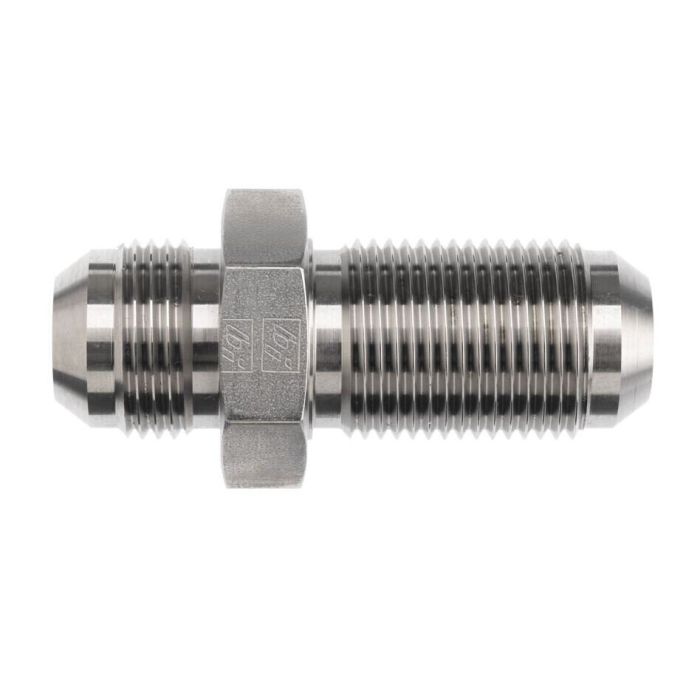

08MJ-08MJ BULKHEAD STRAIGHT

Ask A Question

Description & Features

The 08MJ-08MJ Bulkhead Straight from Brennan Industries Inc is a reliable industry-specific part designed to facilitate secure and efficient connections. With an overall length of 2.440 mm, this bulkhead straight fitting is precisely crafted from high-quality straight steel.

Featuring dual 3/4-16 male JIC SAE 37-degree flare threads, it meets SAE J514 specifications, ensuring a robust fit and optimal performance. The consistent 0.391 mm drill size on both thread sides highlights its uniformity and precision for high-standard applications.

This series 2700 product is built to last, accommodating demanding environments and offering seamless integration into your technical setups. Note that California residents should be aware of PROP-65 warning related to this product.

Supplier Part Number: 2700-08-08

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
MS 51520, SAE J514
Dimensions
2.44 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1 x 1 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Series
2700 Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.391 in
Thread Size
3/4-16

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Tony H on Feb 22, 2026, 4:00 PM
Both sides on this thing are 3/4-16 male JIC? Just want to make sure I ain't reading that wrong before I order.
Answer by: Customer Support on Feb 24, 2026, 3:28 PM
Correct on both counts. Each end carries a 3/4-16 male JIC thread with a SAE 37-degree flare profile, and both sides meet SAE J514 spec. The fitting is symmetric, so there's no inlet or outlet to worry about orienting during install.
Question by: Clint H on Mar 23, 2026, 5:37 PM
Will this bulkhead fitting hold up okay in an oily environment, like around a hydraulic pump?
Answer by: Customer Support on Mar 24, 2026, 6:20 PM
Crafted from straight steel, this bulkhead fitting should withstand exposure to typical hydraulic fluids.
Question by: Connie P on Jul 31, 2025, 7:31 AM
trying to swap out a bulkhead fitting i’ve got now. is this one 3/4-16 male JIC on both sides?
Answer by: Customer Support on Aug 1, 2025, 6:33 PM
Both ends are 3/4-16 male JIC SAE 37 degree flare threads, and they are built to SAE J514, so it matches a 3/4-16 MJ on each side.
