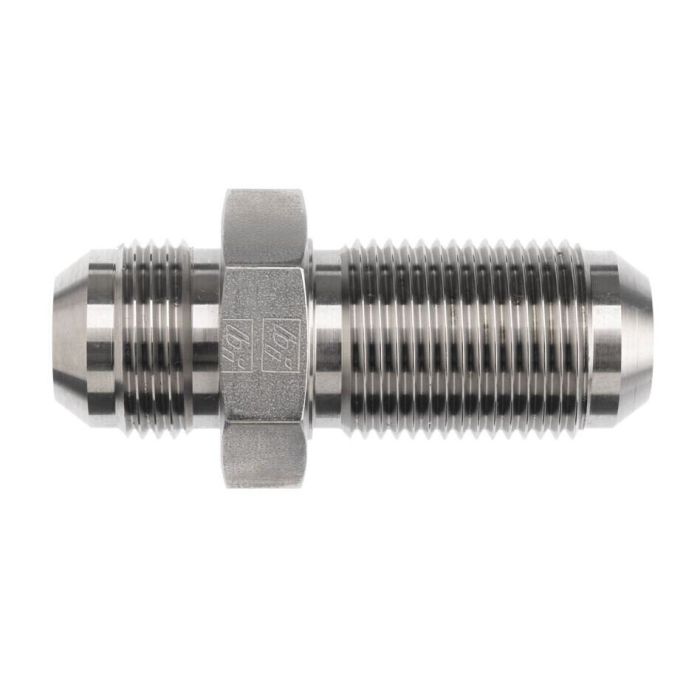

10MJ-10MJ BULKHEAD STRAIGHT STNLS

Constructed from stainless steel, the 10MJ-10MJ Bulkhead Straight Stnls is a straight bulkhead fitting designed for use in hydraulic systems requiring panel or bulkhead-mounted connections. Both ends feature 7/8-14 Male JIC SAE 37° flare threads conforming to SAE J514, with a drill size of 0.484 mm on each side, making it a symmetrical, same-size configuration suited for direct through-panel hydraulic line routing.

The stainless steel construction of this Brennan Industries Series 2700 fitting provides corrosion resistance in demanding environments where carbon steel alternatives may be unsuitable. At an overall length of 2.740 mm, it is compact for inline bulkhead applications. The JIC 37° flare thread form on both connections ensures compatibility with standard JIC hydraulic hose ends and tube fittings across a wide range of equipment.

SKU: 2700-10-10-SS

Supplier Part Number (MPN): 2700-10-10-SS

Alternate Part Numbers: AJ10BU
