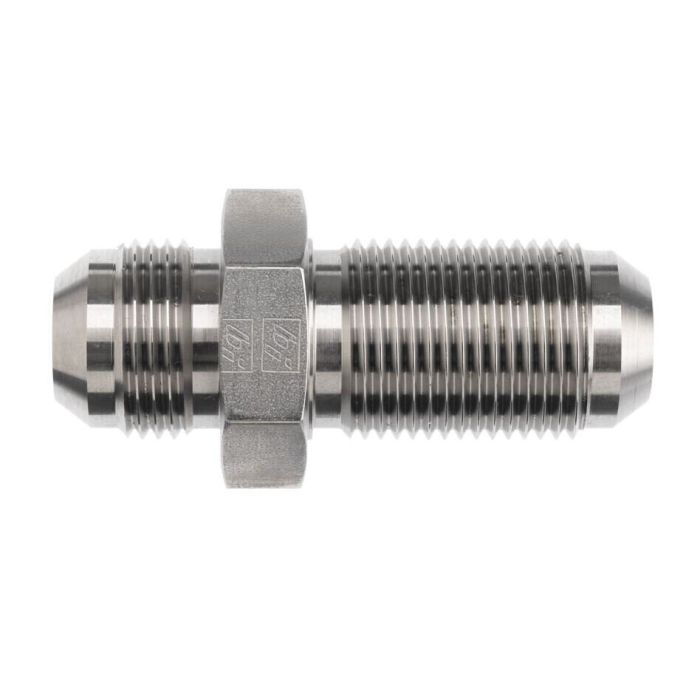

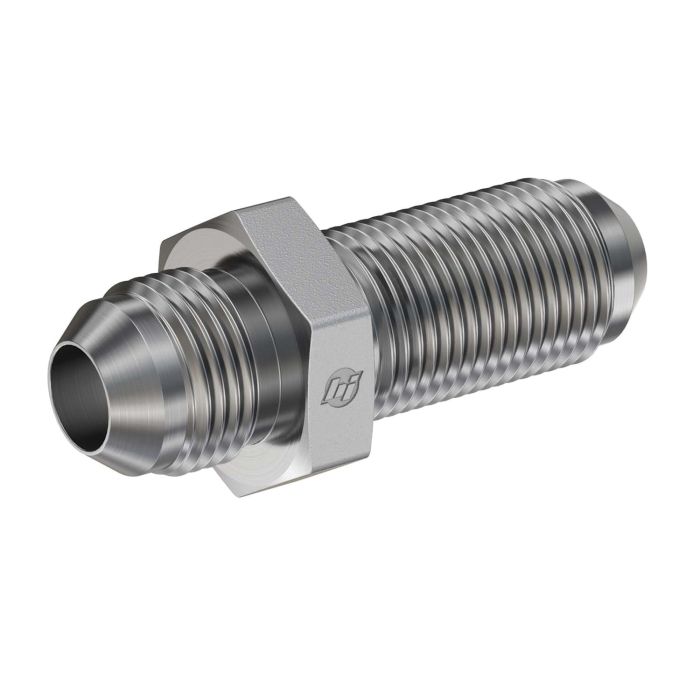

#10 MJIC BLKHD NO NUT

Description & Features

The #10 MJIC BLKHD NO NUT, produced by Brennan Industries Inc, is crafted from high-quality straight steel, ensuring durability and robustness. This bulkhead fitting features a thread size of 7/8-14, adhering to SAE J514 specifications, designed with a male JIC SAE 37-degree flare on both ends.

The overall length of this component is 2.740 mm, making it a reliable choice for various industrial applications. Built for efficient performance, it ensures a consistent connection and reliable fluid transfer.

This product is part of the 2700 series and comes with a PROP-65 warning for California residents.

Supplier Part Number: 2700-10-10

Specifications

Brand
BRENNAN
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
MS 51520, SAE J514
Dimensions
2.74 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/8 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
5000 psi
Series
2700 Series
Thread 2 Drill Dimensions
0.484 in
Thread B1 Drill Dimensions
0.484 in
Thread Size
7/8-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
#3 MJIC BLKHD NO NUT

2700-03-03

3/16 in

3/16 in

3/8-24

5/8 in

#4 MJIC BLKHD NO NUT

2700-04-04

1/4 in

1/4 in

7/16-20

11/16 in

04MJ-06MJ BULKHEAD STRAIGHT

2700-04-06

1/4 in

3/8 in

9/16-18, 7/16-20

0.81 in

#5 MJIC BLKHD NO NUT

2700-05-05

5/16 in

5/16 in

1/2-20

3/4 in

06MJ-04MJ BULKHEAD STRAIGHT

2700-06-04

3/8 in

1/4 in

9/16-18, 7/16-20

0.81 in

06MJ-06MJ BULKHEAD STRAIGHT

2700-06-06

3/8 in

3/8 in

9/16-18

0.81 in

08MJ-08MJ BULKHEAD STRAIGHT

2700-08-08

1/2 in

1/2 in

3/4-16

1 x 1 in

#12 MJIC BLKHD NO NUT

2700-12-12

3/4 in

3/4 in

1-1/16-12

1-3/8 in

14MJ-14MJ BULKHEAD STRAIGHT

2700-14-14

7/8 in

7/8 in

1-3/16-12

1-1/2 in

16MJ-12MJ BULKHEAD STRAIGHT

2700-16-12

1 in

3/4 in

1-5/16-12 x 1-1/16-12

1-5/8

#16 MJIC BLKHD NO NUT

2700-16-16

1 in

1 in

1-5/16-12

1-5/8

ADAPTER

2700-24-24

1-1/2 in

1-1/2 in

1-7/8-12

2-1/8 in

2700-32-32

2700-32-32

2 in

2 in

2-1/2-12

2-3/4 in

Product Questions & Answers (2)

Question by: Eddie T on Jul 1, 2025, 6:38 AM
What size threads does this bulkhead have?
Answer by: Customer Support on Jul 2, 2025, 8:08 PM
This fitting uses 7/8-14 threads on both ends, meeting SAE J514 specifications for a reliable connection.
Question by: Marvin D on Feb 23, 2026, 1:39 PM
got a bulkhead pass-through where both sides need to be #10 JIC, is this the straight one with 37 degree flare ends?
Answer by: Customer Support on Feb 24, 2026, 9:11 PM
Built as a bulkhead straight fitting, it has male JIC SAE 37 degree flare on both ends in a #10 size with 7/8-14 threads per SAE J514.
