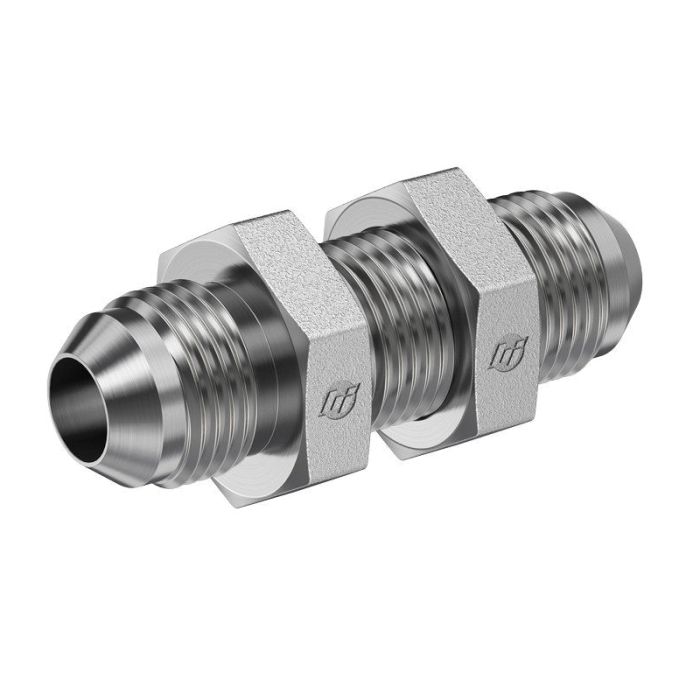

04MJ-04MJ BLKHD STRAIGHT WITH LOCKNUT SS

Constructed from stainless steel, this bulkhead straight fitting is designed for panel-mount installations where a straight-through connection must pass through a bulkhead wall or enclosure. Both ends feature 7/16-20 Male JIC SAE 37° Flare threads conforming to SAE J514, making it compatible with standard JIC flare fittings commonly used in hydraulic and fluid system assemblies. The 04MJ-04MJ Blkhd Straight With Locknut SS includes a stainless steel locknut (0306-04-SS) for secure panel mounting and positive retention against vibration or movement.

With an overall length of 2.070 inches and a hex size of 0.687 inches, this fitting is compact and suited for installations where space is limited. Stainless steel construction provides resistance to corrosion, making it appropriate for demanding environments where carbon steel would be vulnerable. The Brennan Industries 2700-LN series designation indicates this is part of a standardized product line engineered to consistent dimensional and material specifications.

SKU: 2700-LN-04-04-SS

Supplier Part Number (MPN): 2700-LN-04-04-SS
