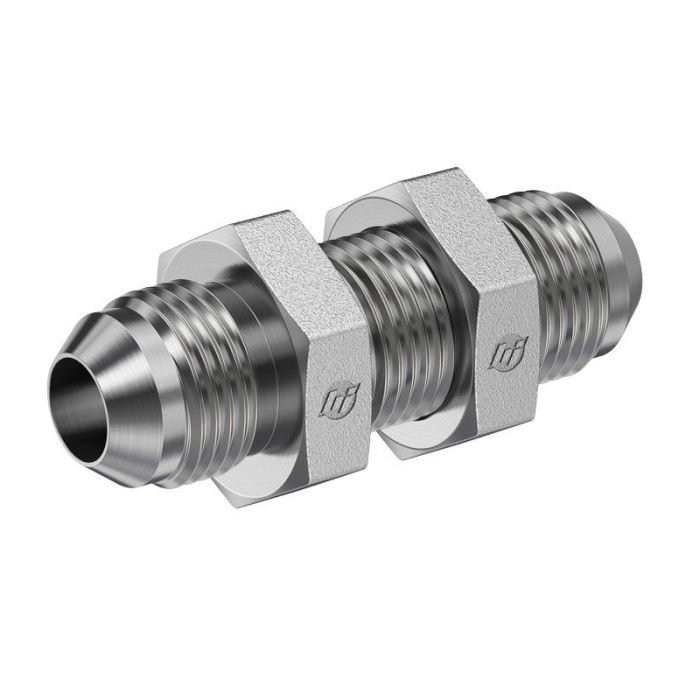

10MJ-10MJ BLKHD STRAIGHT WITH LOCKNUT SS

Ask A Question

Description & Features

Designed for bulkhead panel mounting in hydraulic systems requiring stainless steel construction, the 10MJ-10MJ Blkhd Straight With Locknut SS is a straight-through fitting from Brennan Industries' 2700-LN series. Both ends feature Male JIC SAE 37-degree flare connections sized at 7/8-14 UNF, conforming to SAE J514, making this fitting compatible with standard JIC hydraulic line assemblies.

Fabricated from straight stainless steel, this fitting is well-suited for environments where corrosion resistance is a priority. The included stainless steel locknut (Brennan part 0306-10-SS) secures the fitting through a panel or bulkhead wall, with an overall length of 2.740 inches and a hex size of 1.125 inches across. A panel drill size of 0.484 inches applies to both thread ends. California Proposition 65 warning applies to this product.

SKU: 2700-LN-10-10-SS

Supplier Part Number (MPN): 2700-LN-10-10-SS

Specifications

Brand
BRENNAN
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
MS 51520, SAE J514
Dimensions
2.74 in L
Fitting Type
Adapter
Hex Size
1-1/8 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
6000 psi
Series
2700-LN Series
Thread 2 Drill Dimensions
0.484 in
Thread B1 Drill Dimensions
0.484 in
Thread B2 Drill Dimensions
0.484 in
Thread Size
7/8-14

Product Questions & Answers (1)

Question by: Pete M on Jul 28, 2025, 8:11 PM
I need a stainless fitting for a hydraulic setup. This one says "straight stainless steel" – does that mean it's gonna hold up okay outside?
Answer by: Customer Support on Jul 30, 2025, 10:53 AM
This fitting is made from stainless steel, which offers good corrosion resistance. It should hold up well in environments where rust is a concern.
