MJ BLKHD W/NUT

Description & Features

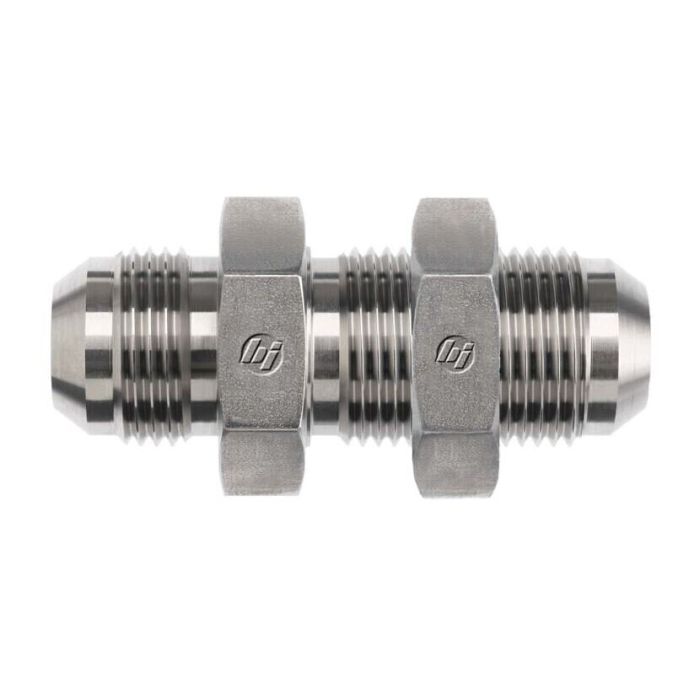

The MJ BLKHD W/NUT is precision engineered by Brennan Industries Inc. for demanding industrial applications. Crafted from straight steel this bulkhead adapter ensures robust performance and longevity.

Featuring a male JIC SAE 37 degree flare on both sides it adheres to SAE J514 specifications delivering reliable joint integrity under high-pressure conditions. The overall length is 2.740 mm and the hex size measures 1.125 mm providing a secure connection point.

The locknut specification is 0306-10 suitable for secure fittings. Both Thread B1 and B2 have a size of 7/8-14 with a drill size of 0.484 mm.

MPN: 2700-LN-10-10

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2700-LN-10-10	Product Weight 0.35 lbs

Product Questions & Answers (3)

Question by: Ronnie P on Oct 14, 2025, 9:35 AM

both ends on this fitting are 7/8-14 male JIC, right? trying to mount it through a panel and want to make sure i got the thread sizes straight before i order

Answer by: Customer Support on Oct 16, 2025, 8:12 AM

Correct on both counts. Each side carries a 7/8-14 male JIC thread with a SAE 37 degree flare, and both conform to SAE J514. The locknut included is spec'd as 0306-10, which clamps against the panel to hold the bulkhead in place once it's run through. Pretty straightforward setup for a panel or bulkhead mount situation.

Question by: Denise F on Jul 6, 2025, 8:45 PM

got a bulkhead pass-through with 7/8-14 jic ends, is this the one with the lock nut or am i lookin at the wrong thing

Answer by: Customer Support on Jul 8, 2025, 11:12 AM

For a pass-through bulkhead setup, this part matches that description. It is a straight steel bulkhead adapter with a male JIC SAE 37 degree flare on both sides, both ends are 7/8-14, and it includes a locknut listed as 0306-10.

Question by: Eddie S on Aug 10, 2025, 8:20 PM

Is this bulkhead fitting made out of regular steel or something else? Just need to make sure it'll hold up.

Answer by: Customer Support on Aug 12, 2025, 5:08 PM

It's crafted from straight steel to ensure it can handle demanding industrial applications and provide long-lasting performance.
