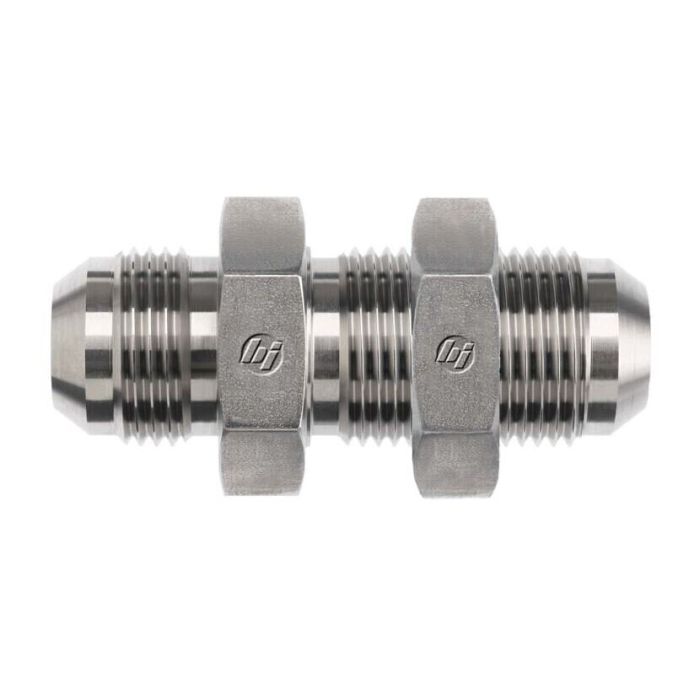

MJ BULKHEAD W/NUT

Description & Features

This straight steel MJ BULKHEAD W/NUT features male JIC SAE 37-degree flare threads on both ends. The thread size for both ends is 1-3/16-12, conforming to SAE J514 standards.

The bulkhead fitting includes a locknut, specification 0306-14, for secure installation. The overall length is 3.120 inches and the C Hex measures 1.500 inches.

SKU: 2700-LN-14-14

Supplier Part Number (MPN): 2700-LN-14-14

Alternate Part Numbers: A2041-14-14S

Specifications

Connection Size 1 7/8 in	Connection Size 2 7/8 in	Connection Type Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards MS 51520, SAE J514	Dimensions 3.12 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-1/2 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 5000 psi	Series 2700-LN Series	Thread 2 Drill Dimensions 0.719 in	Thread B1 Drill Dimensions 0.719 in	Thread Size 1-3/16-12

Product Questions & Answers (1)

Question by: Tommy M on Jul 19, 2025, 9:33 PM

What's the wrench size I'd need for tightening this bulkhead down?

Answer by: Customer Support on Jul 21, 2025, 8:52 AM

For tightening the bulkhead, you'll need a wrench that fits a 1.500-inch C Hex.
