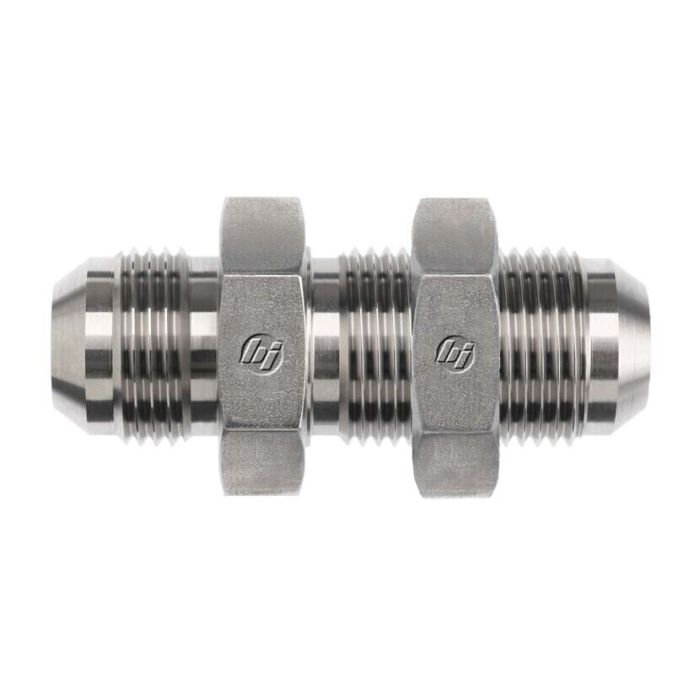

MJ BULKHEAD W/NUT

Description & Features

Designed for bulkhead-mount installations in high-pressure hydraulic systems, this straight steel fitting features dual 2-1/2-12 Male JIC SAE 37° flare threads on both ends, conforming to SAE J514. The MJ Bulkhead W/Nut ships complete with a locking nut (Locknut 0306-32), which secures the fitting through a panel or bulkhead wall without requiring additional hardware.

Manufactured by Brennan Industries from straight steel, the fitting measures 4.200 inches in overall length with a 2.750-inch hex dimension. A panel drill size of 1.781 inches applies to both thread ends. The 2700-LN series construction is suited for fixed-line connections where a secure, leak-resistant bulkhead pass-through is required in industrial hydraulic assemblies.

SKU: 2700-LN-32-32

Supplier Part Number (MPN): 2700-LN-32-32

Alternate Part Numbers: A2041-32-32S

Specifications

Connection Size 1 2 in	Connection Size 2 2 in	Connection Type Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards MS 51520, SAE J514	Dimensions 4.2 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 2-3/4 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Series 2700-LN Series	Thread 2 Drill Dimensions 1.781 in	Thread B1 Drill Dimensions 1.781 in	Thread Size 2-1/2-12

Product Questions & Answers (1)

Question by: Dale O on Jan 14, 2026, 5:36 PM

I need a fitting that can go through a panel. Will this one do the trick?

Answer by: Customer Support on Jan 16, 2026, 1:00 PM

Yes, this MJ bulkhead fitting is specifically designed for bulkhead mounting. It even comes with the locknut you'll need to secure it.
