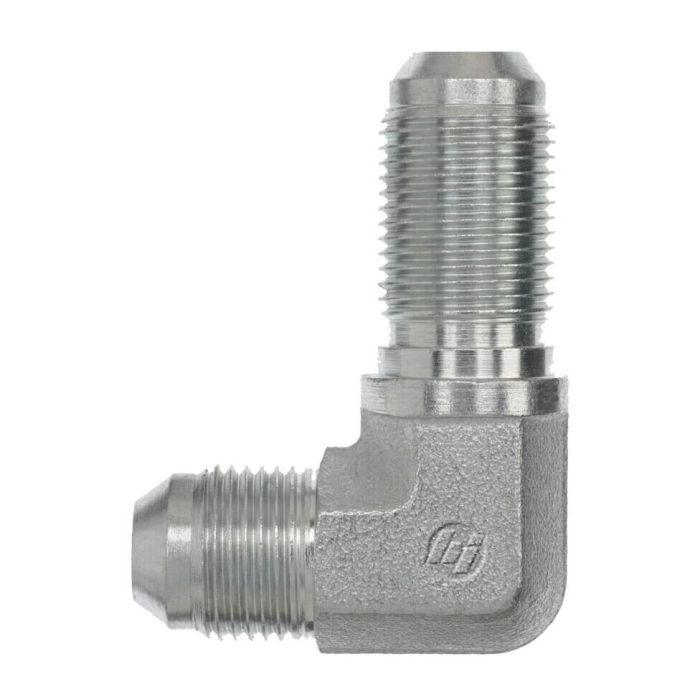

main product photo

08MJ-08MJ BULKHEAD 90 ELB

Ask A Question

Description & Features

Crafted from robust forged steel, this bulkhead 90-degree elbow is designed for precise and reliable connections in demanding industrial environments. Featuring dual MALE JIC SAE 37-degree flare threads, sized at 3/4-16, this fitting ensures secure and leak-free connections adhering to SAE J514 specifications. Its 90-degree angle facilitates directional changes in hydraulic systems, optimizing fluid flow management in confined spaces.

With a centerline length of 1.360 mm and an overall length of 2.110 mm, this elbow fitting suits a wide range of applications where space and alignment are critical. Manufactured by Brennan Industries, it stands as a testament to quality and durability in industrial components.

SKU: 2701-08-08-FG

Supplier Part Number (MPN): 2701-08-08-FG

Alternate Part Numbers: 2701-08-08

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
MS 51507, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
3/4 in
l Dimensions
2.11 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Series
2701-FG Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.391 in
Thread Size
3/4-16

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Jerry P on Feb 14, 2026, 2:54 PM
Is this elbow fitting okay for a setup where space is tight?
Answer by: Customer Support on Feb 15, 2026, 4:43 PM
Designed with a 90-degree angle and specific centerline (1.360 mm) and overall length (2.110 mm), this elbow is made to help manage fluid flow in spots where space is at a premium.
