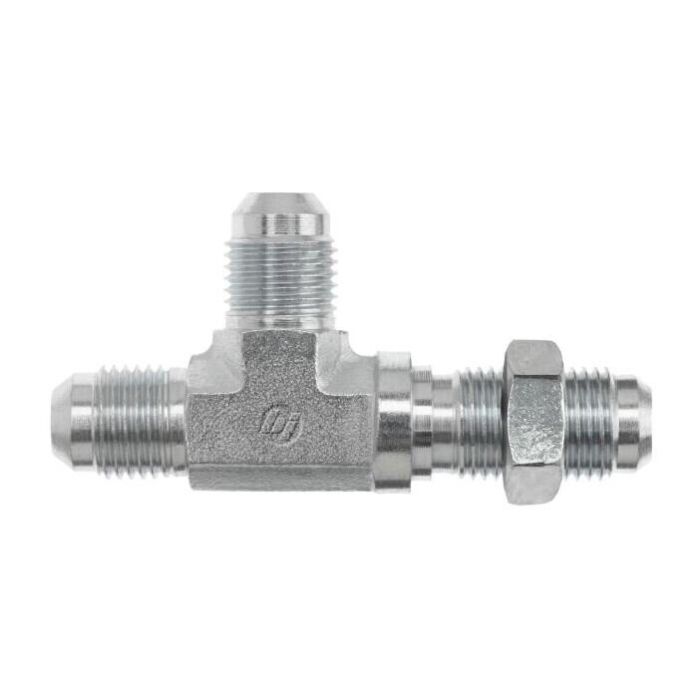

main product photo

MJ-MJ-MJ BULKHEAD

Ask A Question

Description & Features

Forged steel construction makes this MJ-MJ-MJ Bulkhead a reliable choice for hydraulic line routing through panels or enclosures where a secure, fixed connection point is required. All three ports use 1-5/16-12 Male JIC SAE 37° flare threads conforming to SAE J514, with a 1.00-inch tube O.D. rating across each connection. The included locknut (0306-16) secures the bulkhead fitting in place during installation.

Manufactured by Brennan Industries and sourced from the 2704-LN-FG series, this fitting is constructed from forged steel for durability in demanding hydraulic circuits. With an overall length of 4.740 inches and a hex size of 1.625 inches, it is sized for standard industrial hydraulic assemblies. California residents should note that this product carries a Prop 65 warning.

SKU: 2704-LN-16-16-16-FG

Supplier Part Number (MPN): 2704-LN-16-16-16-FG

Alternate Part Numbers: 2704-LN-16-16-16, 2704-LN-161616-FG, 2704-LN-161616FG, A203008-16-16S, C1HN70

Specifications

Brand
BRENNAN
a Dimensions
2.81 in
b Dimensions
1.94 in
c Dimensions
1.94 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Connection Type 3
Male SAE 37 deg JIC Flare
Dimension Standards
SAE J514
Dimensions
4.74 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1.312 in
l2 Dimensions
1.94 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Series
2704-LN-FG Series
Thread 2 Drill Dimensions
0.844 in
Thread 3 Drill Dimensions
0.844 in
Thread B1 Drill Dimensions
0.844 in
Thread Size
1-5/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Question by: Kurt R on Apr 12, 2025, 9:09 AM
got a bulkhead run tee with a locknut, what exactly is this one set up to do?
Answer by: Customer Support on Apr 13, 2025, 7:01 PM
Meant for passing a line through a panel or bracket, this bulkhead run tee gives you three male JIC 37 degree flare connections and includes a locknut (0306-16) to secure the fitting in place.
