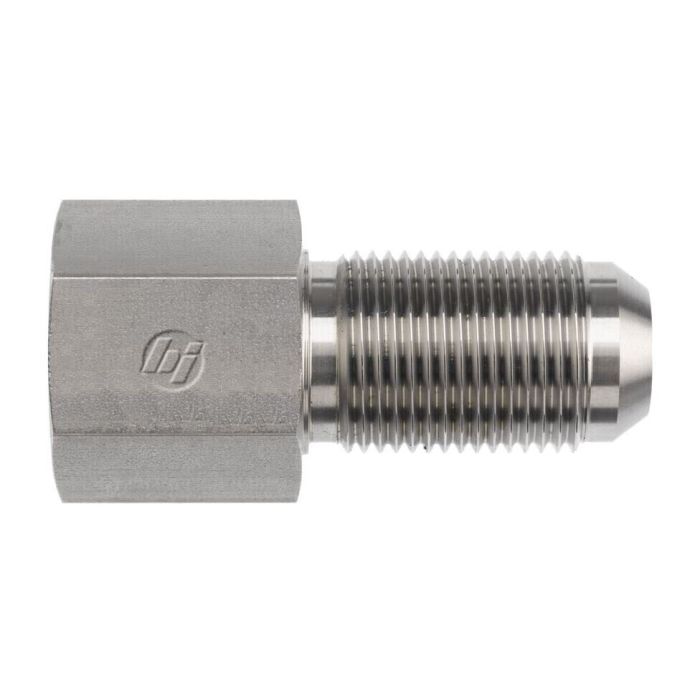

main product photo

02FP-04MJ BULKHEAD STRAIGHT

Ask A Question

Description & Features

This straight bulkhead fitting features a male JIC 37-degree flare on one side and a female NPTF thread on the other. The 02FP-04MJ BULKHEAD STRAIGHT is part of the 2705 series.

It is constructed from straight steel and conforms to SAE J514 for the JIC thread and SAE J476 for the NPTF thread. The male JIC side has a 7/16-20 thread size, while the female NPTF side has a 1/8-27 thread size.

SKU: 2705-02-04

Supplier Part Number (MPN): 2705-02-04

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
FNPT, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1.89 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
11/16 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Series
2705 Series
Thread 2 Drill Dimensions
0.172 in
Thread B1 Drill Dimensions
0.188 in
Thread B2 Drill Dimensions
0.172 in
Thread Size
1/8-27, 7/16-20

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Hubert H on Jan 28, 2026, 3:37 PM
So this is steel, right? Just making sure it's not gonna rust on me.
Answer by: Customer Support on Jan 29, 2026, 9:12 PM
This bulkhead fitting is made from straight steel, so you'll want to consider your application environment. If corrosion is a concern, you might want to explore options with protective coatings.
