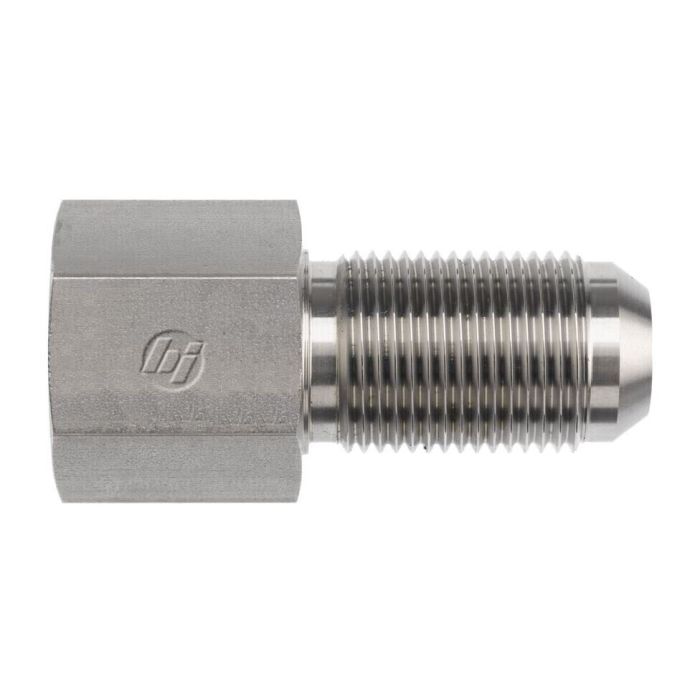

04FP-06MJ BULKHEAD STRAIGHT

Ask A Question

Description & Features

Designed for industrial applications, the 04FP-06MJ Bulkhead Straight offers reliable performance in demanding environments. This product features a straight steel construction, ensuring durability and robustness.

It conforms to the SAE J476 and SAE J514 specifications, maintaining compatibility with industry standards. The female NPTF thread B1 size is 1/4-18 with a drill size of 0.281 mm, while the male JIC SAE 37 degree flare thread B2 size is 9/16-18 with a drill size of 0.297 mm. This ensures precise connections and secure fitting.

Produced by Brennan Industries Inc, the overall length of 2.170 mm makes it suitable for a variety of industrial applications, ensuring ease of installation and reliable performance. The robust construction ensures a long service life.

Supplier Part Number: 2705-04-06

MPN: 2705-04-06

Specifications

Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
FNPT, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
2.17 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.81 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Series
2705 Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.281 in
Thread B2 Drill Dimensions
0.297 in
Thread Size
1/4-18 x 9/16-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Tony C on Feb 5, 2026, 3:59 PM
trying to replace a bulkhead fitting i pulled off a panel, what threads does this one have on each side?
Answer by: Customer Support on Feb 6, 2026, 4:05 PM
It is a bulkhead straight made from steel with a female NPTF on the B1 side and a male JIC 37 degree flare on the B2 side. The NPTF side is 1/4-18 per SAE J476, and the JIC flare side is 9/16-18 per SAE J514.
