06FP-04MJ BULKHEAD STRAIGHT

Description & Features

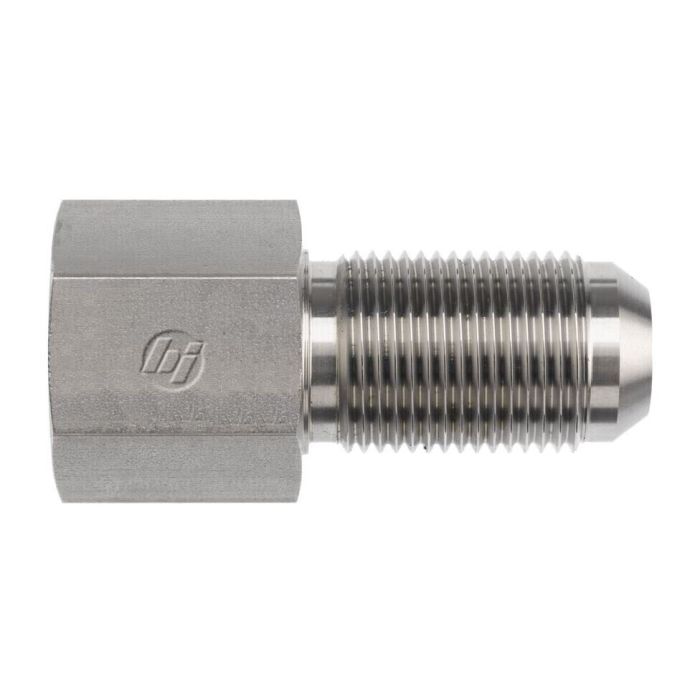

This straight steel bulkhead fitting features a 7/16-20 MALE JIC SAE 37 degree flare on one end and a 3/8-18 FEMALE NPTF thread on the other. The 06FP-04MJ BULKHEAD STRAIGHT is part of the 2705 series from Brennan Industries.

With an overall length of 2.190 mm, this straight fitting conforms to SAE J476 and SAE J514 thread specifications.

SKU: 2705-06-04

Supplier Part Number (MPN): 2705-06-04

Specifications

Connection Size 1 1/4 in	Connection Size 2 3/8 in	Connection Type FNPT, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Female SAE NPTF	Dimension Standards SAE J476, SAE J514	Dimensions 2.19 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 7/8 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 6000 psi	Series 2705 Series	Thread 2 Drill Dimensions 0.172 in	Thread B1 Drill Dimensions 0.406 in	Thread B2 Drill Dimensions 0.172 in	Thread Size 7/16-20 x 3/8-18

Product Questions & Answers (1)

Question by: Phil Y on Jun 29, 2025, 12:29 PM

So, this is a bulkhead fitting... does that mean I can run it through a panel or something?

Answer by: Customer Support on Jul 1, 2025, 7:56 AM

That's right, it's designed to pass through a panel or wall. The "bulkhead" designation means it's made for that type of installation.
