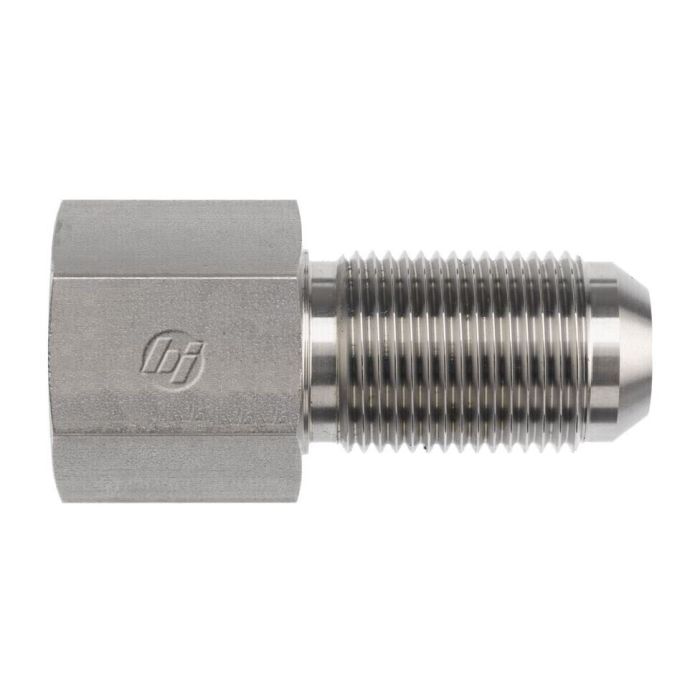

main product photo

08FP-08MJ BULKHEAD STRAIGHT

Ask A Question

Description & Features

Constructed from high-quality straight steel, the 08FP-08MJ Bulkhead Straight fitting by Brennan Industries is designed for reliable performance in industrial applications. This component features a unique combination of a female NPTF thread (1/2-14) and a male JIC SAE 37-degree flare thread (3/4-16), ensuring compatibility with a wide range of hydraulic systems. The fitting adheres to SAE J476 and SAE J514 specifications, reflecting its precision engineering and compliance with industry standards.

With an overall length of 2.610 mm, the bulkhead straight fitting is compact yet robust, suitable for use in demanding environments where secure connections are critical. The product's compatibility with PROP-65 standards provides an additional layer of assurance for users in California. This fitting is part of the Brennan 2705 series, known for its durability and precision in industrial settings.

SKU: 2705-08-08

Supplier Part Number (MPN): 2705-08-08

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
FNPT, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
2.62 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/8 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
5000 psi
Series
2705 Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.531 in
Thread B2 Drill Dimensions
0.391 in
Thread Size
3/4-16 x 1/2-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Shane G on Feb 3, 2026, 6:31 PM
trying to figure out if this fitting'll work going from a JIC line into a female NPTF port on a bulkhead panel, that the right setup for this piece?
Answer by: Customer Support on Feb 4, 2026, 7:01 PM
That's what this fitting handles. One end is a 3/4-16 male JIC with the SAE 37-degree flare, and the other is a 1/2-14 female NPTF. So if you've got a JIC tube line needing to pass through or terminate at a bulkhead with a female NPT port, this is the right combination. Just make sure your port and tube end match those thread sizes before you order.
