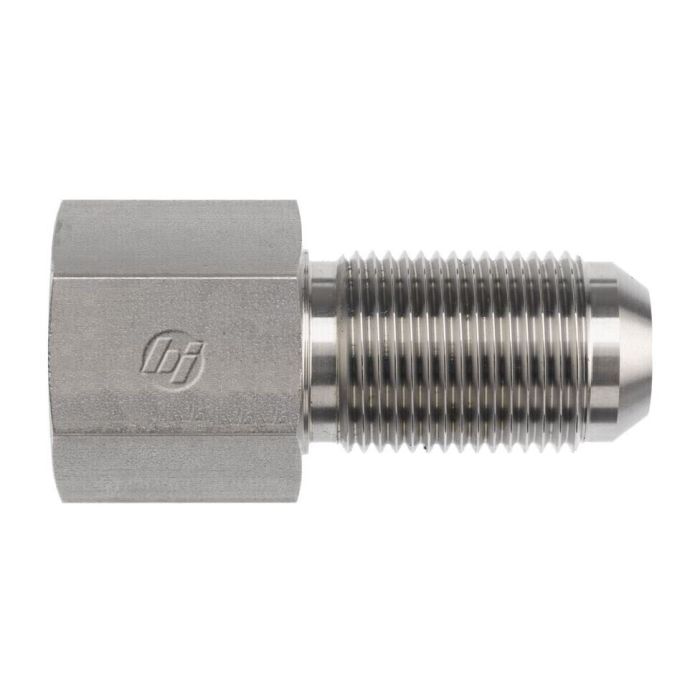

main product photo

20FP-20MJ BULKHEAD STRAIGHT

Ask A Question

Description & Features

This straight steel bulkhead fitting features a male JIC SAE 37-degree flare on one end and a female NPTF thread on the other. The 20FP-20MJ BULKHEAD STRAIGHT is part of the 2705 series from Brennan Industries. It is suitable for various hydraulic applications.

The B1 thread specification adheres to SAE J476, and measures 1-1/4-11-1/2. The B2 thread specification conforms to SAE J514, and measures 1-5/8-12. The overall length of the fitting is 3.380 mm.

SKU: 2705-20-20

Supplier Part Number (MPN): 2705-20-20

Specifications

Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
FNPT, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
3.38 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
2 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Series
2705 Series
Thread 2 Drill Dimensions
1.078 in
Thread B1 Drill Dimensions
1.25 in
Thread B2 Drill Dimensions
1.078 in
Thread Size
1-1/4-11-1/2, 1-5/8-12

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Jimmy W on Jun 15, 2025, 6:24 AM
Just want to be sure, this bulkhead fitting has a male JIC on one side and female NPTF on the other, right?
Answer by: Customer Support on Jun 17, 2025, 7:26 AM
That's correct. It's a straight steel bulkhead fitting with a male JIC SAE 37-degree flare on one end and a female NPTF thread on the other.
