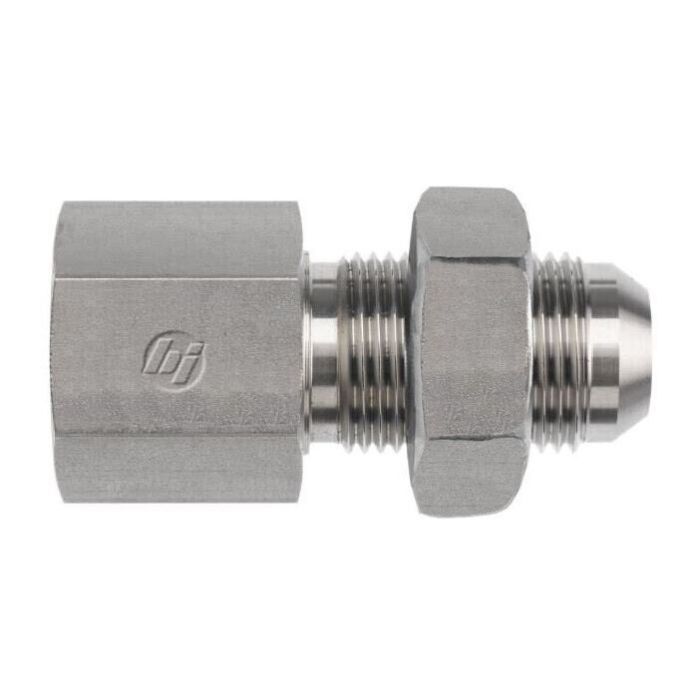

main product photo

FP-MJ BULKHEAD STR

Ask A Question

Description & Features

Featuring a robust straight steel construction, the FP-MJ Bulkhead Straight with Lock Nut is designed for secure and reliable connections in industrial settings. This bulkhead fitting offers a seamless interface with its SAE J476 and SAE J514 compliant threads, ensuring compatibility and performance. The female NPTF thread measures 1-11-1/2, while the male JIC SAE 37-degree flare thread is sized at 1-5/16-12, facilitating a tight seal and effective fluid transfer.

The overall length of 3.230 mm and a hex size of 1.625 mm contribute to its practical design, making it suitable for a variety of hydraulic applications. With the inclusion of a lock nut, this fitting assures enhanced stability under dynamic pressures. The product aligns with the Brennan Industries standards, ensuring quality and durability for demanding industrial environments.

SKU: 2705-LN-16-16

Supplier Part Number (MPN): 2705-LN-16-16

Alternate Part Numbers: A2239-16-16S

Specifications

Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
FNPT, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
3.24 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-5/8
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
3000 psi
Series
2705-LN Series
Thread 2 Drill Dimensions
0.844 in
Thread B1 Drill Dimensions
0.938 in
Thread B2 Drill Dimensions
0.844 in
Thread Size
1-5/16-12 x 1-11-1/2 x 1-5/16-12

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Carl P on Mar 13, 2026, 2:27 PM
Reckon this'd work for hooking up a hydraulic line to a tank?
Answer by: Customer Support on Mar 15, 2026, 12:37 PM
Designed for secure connections in industrial settings, this bulkhead fitting should do the trick for connecting a hydraulic line to a tank, provided the thread sizes match your setup. It's got a lock nut too, which helps keep things stable under pressure.
