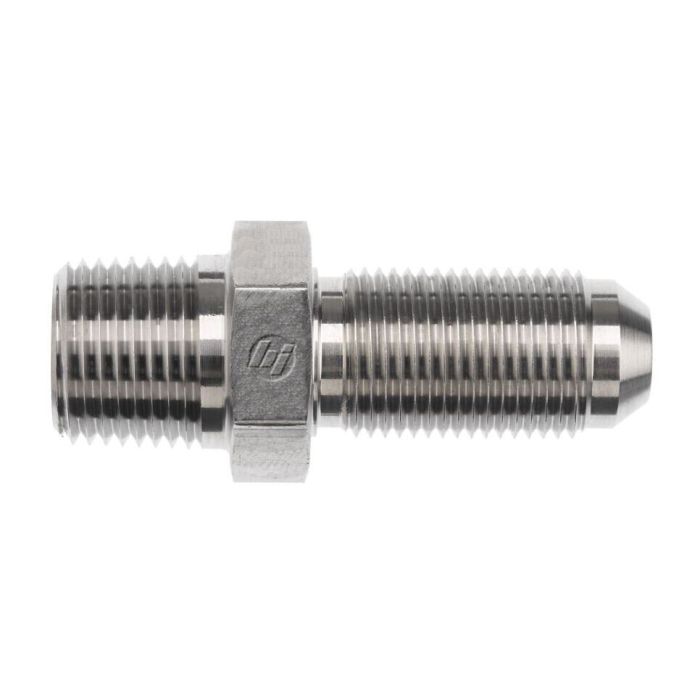

main product photo

04MP-02MJ BULKHEAD STRAIGHT

Ask A Question

Description & Features

A steel bulkhead straight fitting designed to connect a 1/4-18 Male Nptf thread on one end to a 5/16-24 Male JIC SAE 37-degree flare on the other, the 04Mp-02Mj Bulkhead Straight from Brennan Industries bridges two common hydraulic thread standards in a single compact body. The Nptf end conforms to SAE J476, while the JIC flare end meets SAE J514, making this fitting suitable for systems where tapered pipe threads and flared tube connections must be joined at a panel or bulkhead wall.

Constructed from straight steel, this fitting suits demanding industrial hydraulic environments. Its straight configuration and short overall length of 1.980 mm keep installation straightforward in space-constrained mounting locations. California residents should note that this product is subject to Proposition 65 requirements.

SKU: 2706-04-02

Supplier Part Number (MPN): 2706-04-02

Specifications

Connection Size 1
1/8 in
Connection Size 2
1/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1.97 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
5/8 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Series
2706 Series
Thread 2 Drill Dimensions
0.062 in
Thread B1 Drill Dimensions
0.281 in
Thread B2 Drill Dimensions
0.062 in
Thread Size
1/4-18 x 5/16-24

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Floyd M on Nov 12, 2025, 4:58 PM
Reckon this here fitting will hold up alright in a hydraulic system on farm equipment? Just need somethin' reliable, ya know?
Answer by: Customer Support on Nov 14, 2025, 6:46 AM
Designed to bridge NPTF and JIC flare connections, this fitting is constructed from straight steel, so it should handle the demands of most industrial hydraulic environments without issue.
