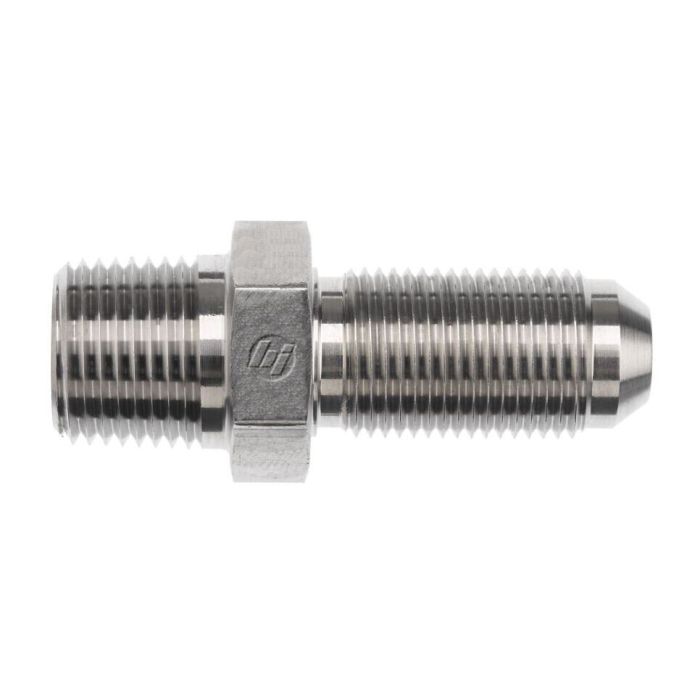

04MP-04MJ BULKHEAD STRAIGHT

Description & Features

Engineered for robust industrial applications, the 04MP-04MJ Bulkhead Straight fitting offers reliable performance with its straight steel construction. This fitting features a Male NPTF end with a thread size of 1/4-18, conforming to SAE J476 standards, ensuring compatibility with various hydraulic systems. On the opposite end, it utilizes a Male JIC SAE 37 Degree Flare thread, sized 7/16-20, adhering to SAE J514 specifications for secure and leak-proof connections.

With an overall length of 2.080 mm, the 04MP-04MJ Bulkhead Straight fitting is designed to meet the demands of high-pressure environments while maintaining structural integrity. Manufactured by Brennan Industries, this fitting is a dependable choice for integrative hydraulic applications. Ensure compliance with PROP-65 guidelines when using this product in California.

SKU: 2706-04-04

Supplier Part Number (MPN): 2706-04-04

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2706-04-04	Product Weight 0.08 lbs

Product Questions & Answers (3)

Question by: Bonnie H on Aug 16, 2025, 6:06 PM

Does this fitting have a NPTF thread on one end and a JIC flare on the other, or are both ends the same?

Answer by: Customer Support on Aug 18, 2025, 9:22 AM

One end is a 1/4-18 Male NPTF thread built to SAE J476, and the other is a 7/16-20 Male JIC SAE 37 Degree Flare conforming to SAE J514. So yeah, the two ends are different thread types, which is kind of the whole point of a fitting like this when you're bridging a pipe-thread port to a JIC flare line.

Question by: Wayne S on May 24, 2025, 9:58 PM

Hey, will this bulkhead fitting hold up okay in a hydraulic setup pushing some serious pressure?

Answer by: Customer Support on May 26, 2025, 1:37 PM

This straight steel fitting is engineered to maintain structural integrity even in high-pressure environments.

Question by: Johnny M on Jul 9, 2025, 7:20 PM

got a panel pass-thru deal. is this the bulkhead fitting that’s NPTF on one side and a 37 degree JIC on the other?

Answer by: Customer Support on Jul 11, 2025, 11:41 AM

For a bulkhead straight connection, it gives you a male NPTF end (1/4-18, SAE J476) on one side and a male JIC 37 degree flare end (7/16-20, SAE J514) on the other.
