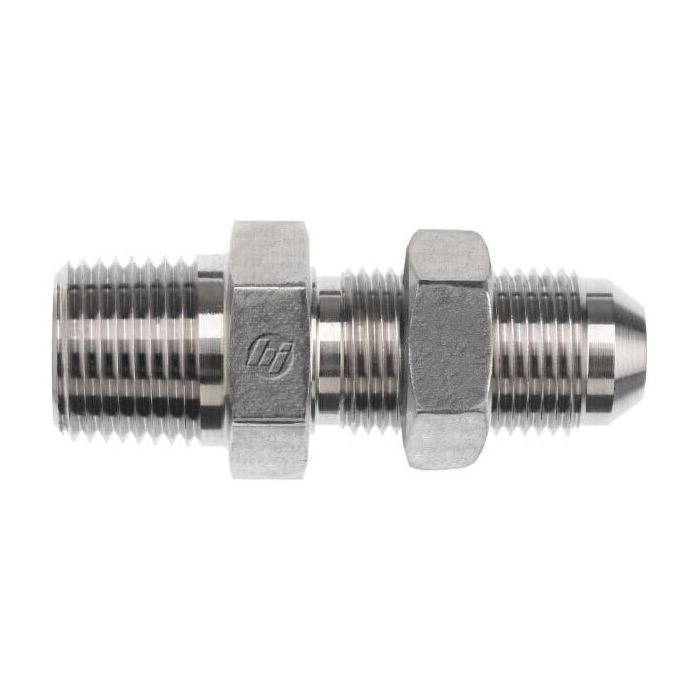

main product photo

02MP-04MJ BULKHEAD STRAIGHT W LOCKNUT

Ask A Question

Description & Features

This straight bulkhead fitting features a 7/16-20 Male JIC SAE 37 Degree Flare connection on one end and a 1/8-27 Male NPTF thread on the other. This 02MP-04MJ BULKHEAD STRAIGHT W LOCKNUT is constructed from steel for durability.

It conforms to SAE J514 and SAE J476 standards. The locknut conforms to specification 0306-04.

SKU: 2706-LN-02-04

Supplier Part Number (MPN): 2706-LN-02-04

Alternate Part Numbers: C1HD63, FMC3653068

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1.84 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
11/16 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Series
2706-LN Series
Thread 2 Drill Dimensions
0.172 in
Thread B1 Drill Dimensions
0.188 in
Thread B2 Drill Dimensions
0.172 in
Thread Size
1/8-27, 7/16-20

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Kirk C on Jul 29, 2025, 10:34 AM
Will this fitting hold up okay in a hydraulic system for a log splitter? I don't wanna use the wrong thing.
Answer by: Customer Support on Jul 30, 2025, 12:52 PM
This bulkhead fitting is constructed from steel, which should provide good durability for hydraulic applications like log splitters. Just make sure the thread sizes (7/16-20 Male JIC and 1/8-27 Male NPTF) match what you need.
