04MP-04MJ BLH W/NUT

Description & Features

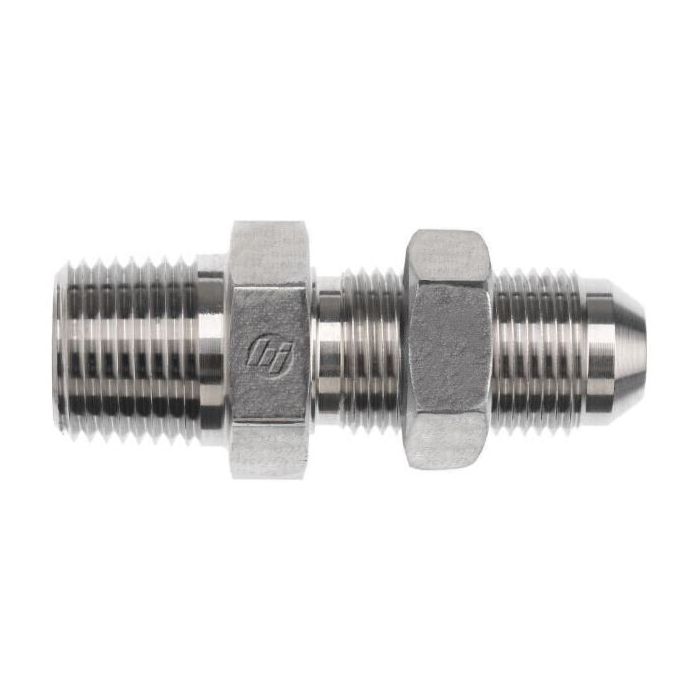

This straight steel fitting features a 7/16-20 male JIC SAE 37-degree flare end and a 1/4-18 male NPTF thread. The 04MP-04MJ BLH W/NUT includes a locknut.

This fitting conforms to SAE J476 and SAE J514 standards.

SKU: 2706-LN-04-04

Supplier Part Number (MPN): 2706-LN-04-04

Alternate Part Numbers: 1046-0790, A2240-4-4S

Specifications

Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Male JIC, MNPT	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 30 deg NPTF	Dimension Standards SAE J476, SAE J514	Dimensions 2.18 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 11/16 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 6000 psi	Series 2706-LN Series	Thread 2 Drill Dimensions 0.172 in	Thread B1 Drill Dimensions 0.281 in	Thread B2 Drill Dimensions 0.172 in	Thread Size 7/16-20, 1/4-18

Product Questions & Answers (1)

Question by: Curt C on Apr 8, 2025, 8:58 PM

Will this fitting hold up okay in an oily environment, or do I need something more heavy-duty?

Answer by: Customer Support on Apr 10, 2025, 11:08 AM

This straight steel fitting is suitable for use with hydraulics, so it should be compatible with typical hydraulic oils. Its durability in specific oily environments will depend on factors like the type and concentration of oil, temperature, and pressure.
