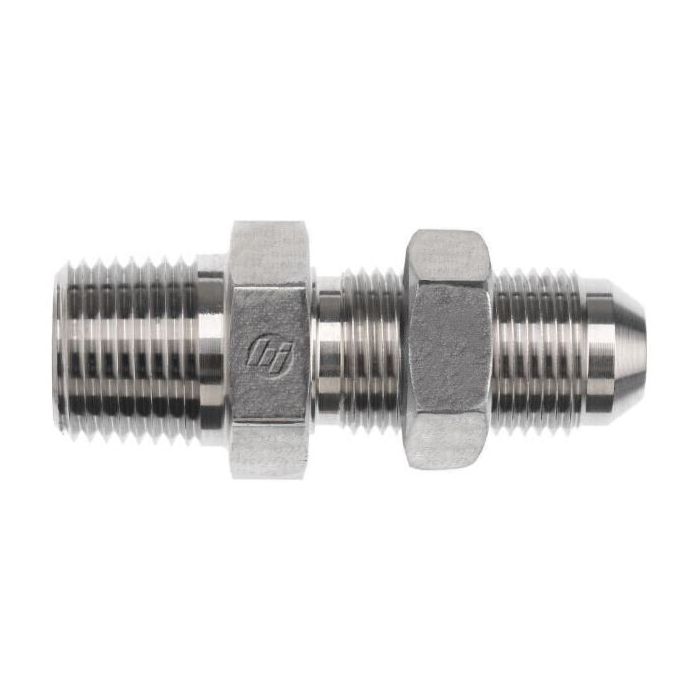

04MP-06MJ BULKHEAD STRAIGHT W LOCKNUT

Ask A Question

Description & Features

Designed for robust industrial use, the 04MP-06MJ Bulkhead Straight with Locknut is crafted from high-quality straight steel, ensuring durability and reliability in demanding environments. Its male NPTF and male JIC SAE 37-degree flare connections provide secure, leak-free fitting for hydraulic systems, making it a versatile component in various industrial applications. The precision-engineered Brennan Series 2706-LN offers a seamless installation with a locknut feature, enhancing stability and maintaining alignment.

This bulkhead fitting features a 1/4-18 thread size for B1 and a 9/16-18 thread size for B2, conforming to SAE J476 and SAE J514 standards, respectively. With an overall length of 2.180 mm and a hex size of 0.812 mm, it is designed for optimal performance. The PROP-65 warning is applicable for California residents, ensuring compliance with safety regulations.

SKU: 2706-LN-04-06

Supplier Part Number (MPN): 2706-LN-04-06

Alternate Part Numbers: A2240-4-6S

Specifications

Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
2.19 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.81 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Series
2706-LN Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.281 in
Thread B2 Drill Dimensions
0.297 in
Thread Size
1/4-18 x 9/16-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Cody H on Jul 18, 2025, 7:45 AM
What kind of steel is this fitting made out of? Just want to make sure it'll hold up.
Answer by: Customer Support on Jul 19, 2025, 9:25 PM
It's made from straight steel, which should be durable enough for most industrial uses.
