20MP-20MJ BLH W/NUT

Description & Features

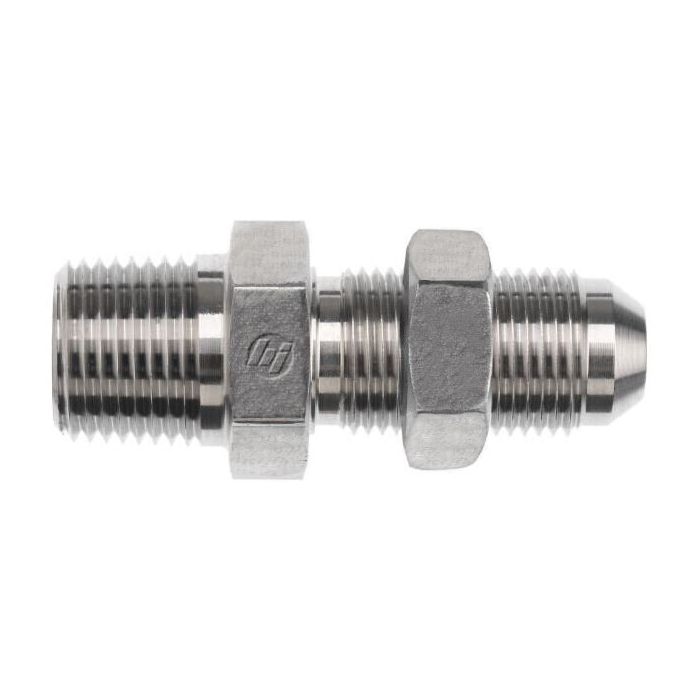

This straight steel fitting, also known as a 20MP-20MJ BLH W/NUT, features a male NPTF thread on one end and a male JIC SAE 37-degree flare on the other. It adheres to SAE J476 and SAE J514 standards for thread specifications, respectively.

The B1 thread measures 1-1/4-11-1/2 with a 1.250 drill mm, while the B2 thread measures 1-5/8-12 with a 1.078 drill mm. It has a 1.875 Brennan C Hex 1 mm. This fitting includes a locknut manufactured to specification 0306-20.

SKU: 2706-LN-20-20

Supplier Part Number (MPN): 2706-LN-20-20

Alternate Part Numbers: A2240-20-20S

Specifications

Brand BRENNAN	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Male JIC, MNPT	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 30 deg NPTF	Dimension Standards SAE J476, SAE J514	Dimensions 3.32 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-7/8 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 3000 psi	Series 2706-LN Series	Thread 2 Drill Dimensions 1.078 in	Thread B1 Drill Dimensions 1.25 in	Thread B2 Drill Dimensions 1.078 in	Thread Size 1-1/4-11-1/2, 1-5/8-12

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
2706-LN-02-04	1/4 in	1/8 in	1/8-27, 7/16-20
2706-LN-04-02	1/8 in	1/4 in	1/4-18 x 5/16-24
2706-LN-04-04	1/4 in	1/4 in	7/16-20, 1/4-18
2706-LN-04-06	3/8 in	1/4 in	1/4-18 x 9/16-18
2706-LN-06-06	3/8 in	3/8 in	3/8-18, 9/16-18
2706-LN-06-08	1/2 in	3/8 in	3/4-16 x 3/8-18
2706-LN-08-08	1/2 in	1/2 in	3/4-16 x 1/2-14
2706-LN-08-10	5/8 in	1/2 in	1/2-14 x 7/8-14
2706-LN-12-12	3/4 in	3/4 in	1-1/16-12 x 3/4-14
2706-LN-16-16	1 in	1 in	1-5/16-12 x 1-11-1/2 x 1-5/16-12
