BRENNEN PIPE BILKHEAD W/LOCKNUT

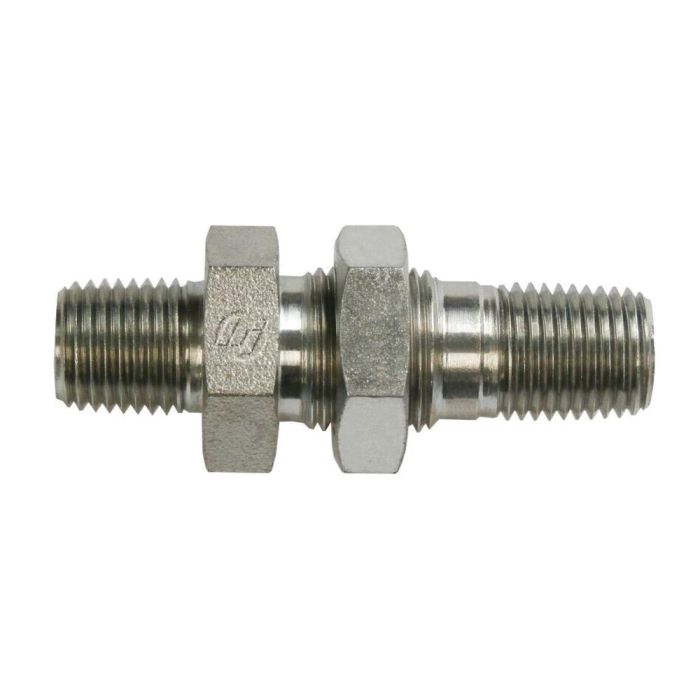

A straight bulkhead fitting with locknut configuration, the Brennan Industries Pipe Bulkhead with Locknut provides a secure, panel-mounted connection point in hydraulic line routing applications. Both ports carry 1/2-14 NPTF male threads, with a corresponding B3 BSPP thread of 5/8-14, making it compatible with common inch-based hydraulic thread standards across the fitting's interface points.

Designed for bulkhead-style installations where a line must pass through a panel or enclosure wall, the locknut secures the fitting firmly in place once positioned. The hex dimension of 1.260 inches applies consistently across both the C1 and C hex measurements, and the B1 and B2 drill dimensions are each 0.531 inches. This fitting belongs to Brennan's 2708-LN series and is supplied as a male configuration.

SKU: 2708-LN-08-08

Supplier Part Number (MPN): 2708-LN-08-08
