JIC X ORB BULKHEAD-6

Description & Features

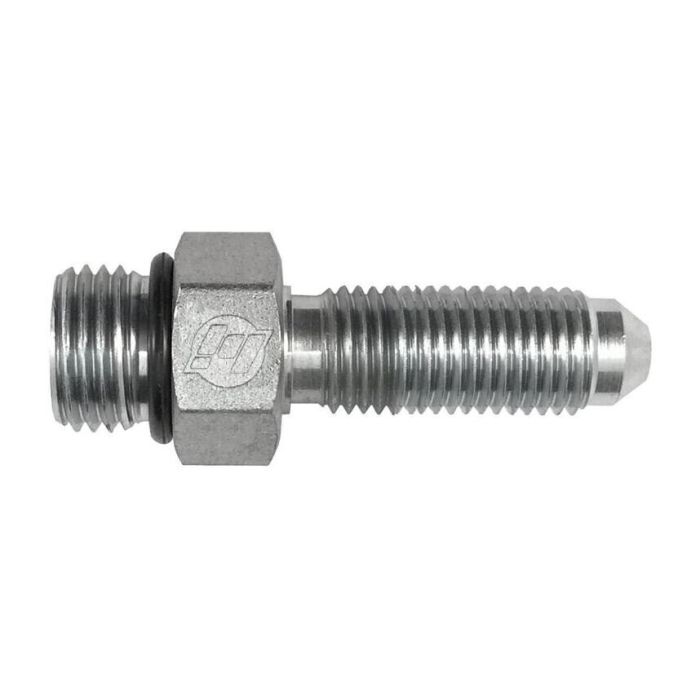

Designed for bulkhead installations requiring a straight-through connection, this male ORB to male JIC fitting connects a 9/16-18 O-ring Boss port to a 9/16-18 SAE 37° flare on 3/8" OD tubing. The JIC X ORB Bulkhead-6 is manufactured by Brennan Industries as part of the 2764-O series and features a 0.813" hex for wrench engagement during installation.

The matching drill size of 0.297" on both ends makes this fitting well suited for panel or bulkhead mounting in hydraulic circuits where a sealed, inline transition between ORB and JIC connections is required.

SKU: 2764-06-06-O

Supplier Part Number (MPN): 2764-06-06-O

Specifications

b1 Drill Dimensions 0.297 in	b2 Drill Dimensions 0.297 in	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Male JIC, Male SAE ORB	Connection Type 1 Male SAE ORB	Connection Type 2 Male SAE 37 deg JIC	Dimension Standards SAE J1926, SAE J514	Dimensions 2.02 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 0.81 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series 2764-O Series	Thread Size 9/16-18	Tube OD 3/8 in	Tube Outside Diameter 0.38 in

Product Questions & Answers (1)

Question by: Larry S on Jun 13, 2025, 11:34 AM

Will this fitting work to connect a 3/8" OD tube to a 9/16-18 O-ring port on a hydraulic tank?

Answer by: Customer Support on Jun 15, 2025, 6:26 AM

Designed for bulkhead installations, this fitting provides a straight-through connection between a 9/16-18 O-ring Boss port and a 9/16-18 SAE 37° flare on 3/8" OD tubing, making it suitable for your application.
