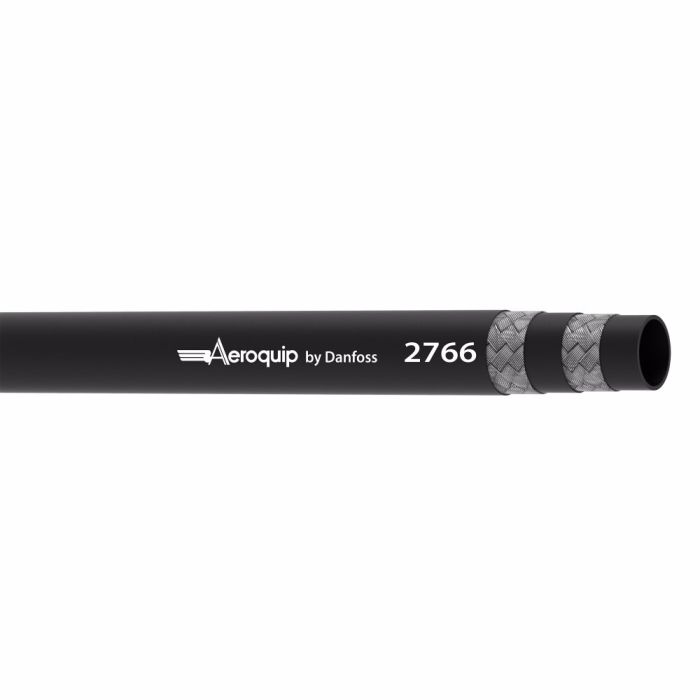

Aeroquip Hose And Coil - Code

Description & Features

Built to meet MIL-DTL-13531 Type 1, Class A requirements, this dash -12 hose is engineered for military and marine hydraulic applications where reliability under demanding conditions is critical. The Aeroquip Hose And Coil - Code features a synthetic rubber inner tube and cover with two-ply wire braid reinforcement, supporting high-pressure hydraulic circuits as well as crude fuel, lubricating oils, and gasoline service.

The conductive construction helps manage static buildup, and the synthetic rubber cover provides standard abrasion resistance across a broad temperature range starting at -65°F. Compatible with skive nipple crimp and reusable fittings, the hose offers flexibility in assembly configurations. A 9.5-inch minimum bend radius suits routing in space-constrained installations.

SKU: 2766-12

Supplier Part Number (MPN): 2766-12

Specifications

Abrasion Resistance 29	Application High pressure hydraulics, crude fuel, and lubricating oils, gasoline.	Color Black	Compliances MIL-DTL-13531 Type 1, Class A	Conductivity 30	Construction 2-ply braid	Cover Material Synthetic Rubber	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Designed for safety and reliability\|Wide range of styles, configurations\|Maximum durability under harsh operating conditions	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 9.50	Minimum Working Temperature -65	Product Width 1.28	Qualified Hose Fittings Skive Nipple Crimp; Reusable Fittings	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number 2766-12	Tube Material Synthetic Rubber	Product Weight 1.32 lbs

Product Questions & Answers (1)

Question by: Merle S on Mar 28, 2026, 8:04 AM

Will this Aeroquip hose handle regular unleaded gas without falling apart on me?

Answer by: Customer Support on Mar 29, 2026, 11:49 AM

It's rated for gasoline service, so regular unleaded should be no problem. Just make sure your fittings are also compatible.
