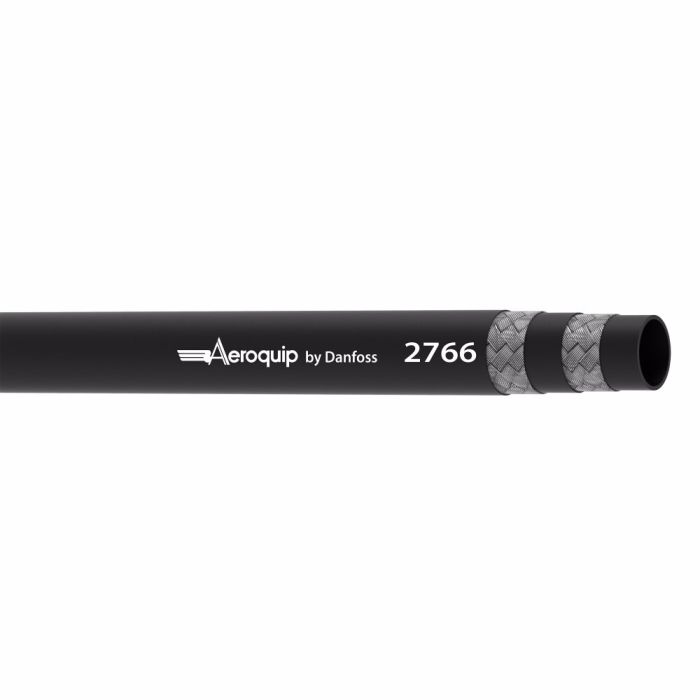

Aeroquip Hose And Coil - Code

Description & Features

Built to meet the demands of marine and military service, this dash -16 hose is constructed with a synthetic rubber inner tube and cover, reinforced with a 2-ply wire braid for reliable performance under high-pressure conditions. The Aeroquip Hose And Coil - Code 2766-16 is rated for use with high-pressure hydraulics, crude fuel, lubricating oils, and gasoline, making it a capable choice across a broad range of fluid transfer applications in demanding environments.

The hose meets MIL-DTL-13531 Type 1, Class A compliance, confirming its suitability for military-grade specifications. A conductive construction and black synthetic rubber cover with standard abrasion resistance round out the design. Compatible with skive nipple crimp and reusable fittings, it offers flexibility in assembly configurations. The minimum bend radius is 11 inches, and the hose is rated for service down to -65°F, supporting use in cold-environment applications.

SKU: 2766-16

Supplier Part Number (MPN): 2766-16

Specifications

Abrasion Resistance 29	Application High pressure hydraulics, crude fuel, and lubricating oils, gasoline.	Color Black	Compliances MIL-DTL-13531 Type 1, Class A	Conductivity 30	Construction 2-ply braid	Cover Material Synthetic Rubber	Dash Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Designed for safety and reliability\|Wide range of styles, configurations\|Maximum durability under harsh operating conditions	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 11	Minimum Bend Radius 11	Minimum Working Temperature -65	Product Width 1.61	Qualified Hose Fittings Skive Nipple Crimp; Reusable Fittings	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number 2766-16	Tube Material Synthetic Rubber	Product Weight 2.12 lbs

Product Questions & Answers (1)

Question by: Larry W on Sep 5, 2025, 8:46 PM

Reckon this hose can handle regular gasoline without any trouble?

Answer by: Customer Support on Sep 7, 2025, 8:44 AM

Application includes gasoline, crude fuel, lubricating oils and high pressure hydraulics, so you're good to go there.
