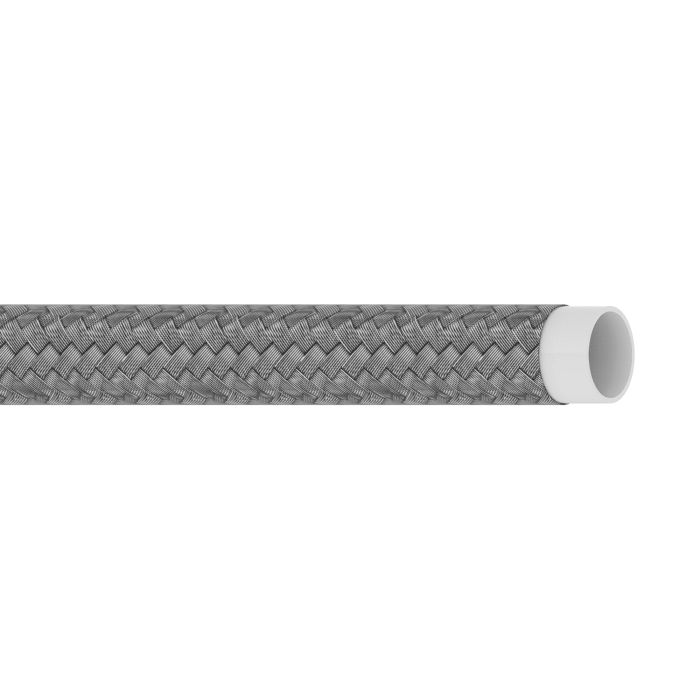

Aeroquip TEF Hose.88 ID 1000

Description & Features

Engineered for resilience in demanding environments, the Eaton Aeroquip TEF Hose offers premium abrasion resistance and is ideal for steam, compressor discharge, and most chemical applications. This hose features a 1 Ply Braid construction with an Aramid Polyester cover, ensuring durability and flexibility. The Teflon tube material provides a wide temperature range and is impervious to degradation, making it suitable for industrial use. Certified to ABS and SAE 100R14A standards, it assures reliability and compliance with industry norms.

With a stainless steel reinforcement, this hose effectively withstands vibration and impulsing. The 0.88-inch inner diameter and minimum bend radius of 9 inches enable versatile installation options. Designed with conductivity in mind, it meets USCG and DNV compliance requirements for safety and performance. The Aeroquip TEF Hose.88 ID 1000 is an optimal choice for professionals seeking long-lasting and efficient hydraulic solutions.

SKU: 2807-16

Supplier Part Number (MPN): 2807-16

Alternate Part Numbers: C1BJ81, MI-07649013, MINO-00015X00975

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number C1BJ81, Alternate Part Number MI-07649013, Alternate Part Number MINO-00015X00975	Application Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.	Certifications ABS\|SAE 100R14A	Color Blue	Compliances USCG\|DNV	Conductivity 30	Construction 1 Ply Braid	Cover Material Aramid Polyester	Dash Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 9	Minimum Bend Radius 9	Minimum Working Temperature -100	Product Width 1.06	Reinforcement Material Stainless Steel	Sub Brand Aeroquip	Supplier Part Number 2807-16	Tube Material Teflon	Product Weight 3.00 lbs

Product Questions & Answers (2)

Question by: Sherry J on Apr 28, 2025, 3:31 PM

got a steam line that sees a lot of vibration, is this hose built to handle that kind of shaking around?

Answer by: Customer Support on Apr 30, 2025, 6:36 AM

Built for rough service, the TEF hose is called out for withstanding vibration and impulsing, and it uses a stainless steel braid over a Teflon tube with a premium abrasion resistant cover.

Question by: Hank O on Jul 23, 2025, 11:05 AM

hose says not recommended for steam-cold water cycling, what exactly does that mean for compressor discharge use?

Answer by: Customer Support on Jul 24, 2025, 6:29 PM

Compressor discharge is actually one of the applications this hose is built for, so you're fine there. The steam-cold water cycling restriction is specifically about situations where the hose gets hit with steam and then rapidly cooled with cold water in repeated cycles, like certain cleaning or sterilization setups. That kind of thermal shock back and forth is what causes problems. Straight compressor discharge duty, even at elevated temps, doesn't put that same kind of stress on the hose.
