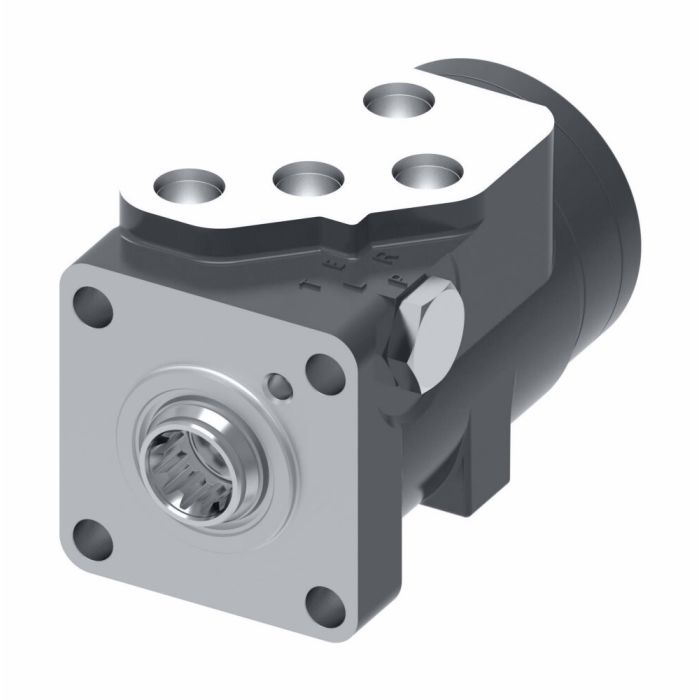

main product photo

CHAR-LYNN SRS 5 SQ.

Ask A Question

Description & Features

This Eaton Char-Lynn Series 5 steering control unit is suitable for small turf care and utility vehicle applications, including lawn and garden equipment, turf equipment, golf course maintenance equipment, lift trucks, and compact utility tractors.

The CHAR-LYNN SRS 5 SQ. provides a flow rate of 19 LPM and a maximum pressure of 140 bar (2,030 psi).

SKU: 291-1034

Supplier Part Number (MPN): 291-1034-003

Specifications

Brand
Danfoss
Color
Black
Design Code
3
Input Torque
Standard
Load Circuit
Non-Reaction
Mechanical Interface
Internal Involute Spline, 12-Tooth, 16/32 Diametral Pitch, 30 deg Pressure Angle
Mounting Thread
(4) M10x1.5 6H Mounting Face, (4) 9/16-18 UNF-2B SAE O-ring Port
Mounting Type
Threaded
Neutral Circuit
Open Center
Paint and Packaging
Black Paint
Return Pressure Rating
10
Segment Code
A
Series
5 Series
Valve Options
Manual Steering Check Valve

Product Questions & Answers (2)

Question by: Chad R on Sep 21, 2025, 7:42 AM
what kind of equipment is this steering unit built for? got a compact tractor and a couple turf machines and tryin to figure out if this fits either one
Answer by: Customer Support on Sep 23, 2025, 7:38 AM
Lawn and garden equipment, turf care vehicles, golf course maintenance machines, compact utility tractors, and lift trucks all fall within the intended application range for this unit. If your compact tractor and turf machines sit in any of those categories, you're working within what this unit is rated for.
Question by: Lee A on Jun 6, 2025, 1:49 PM
got a small mower that uses a steering control unit, is this one meant for that kind of setup?
Answer by: Customer Support on Jun 7, 2025, 2:51 PM
For small turf care and utility vehicle work, this Series 5 steering control unit is a common fit type, and the listed applications include lawn and garden equipment, turf equipment, and golf course maintenance machines.
