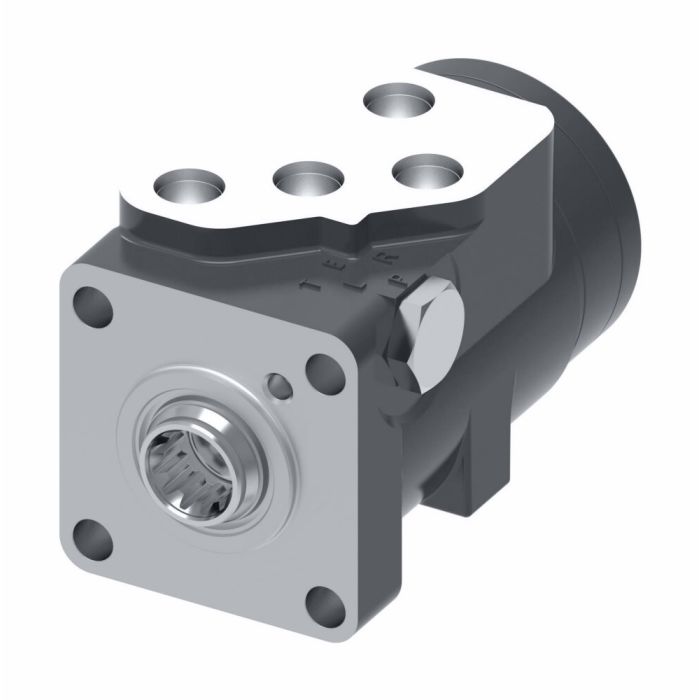

SRS 5 STEERING VALVE

Description & Features

Designed for small turf care and compact utility vehicle applications, the Char-Lynn SRS 5 Steering Valve is a Steering Control Unit (SCU) suited for use in lawn and garden equipment, golf course maintenance equipment, and lift trucks. It handles flow rates of 11–19 L/min (3–5 gal/min) and is rated to a maximum pressure of 140 bar (2,030 psi), making it a practical fit for light-duty steering circuits in compact utility tractors and similar equipment.

Part of the Danfoss/Eaton Series 5 platform, this unit measures 3.17 inches in width and is built for the demands of turf and utility vehicle steering systems where space and flow requirements are modest.

SKU: 291-1043-003

Supplier Part Number (MPN): 291-1043-003

Specifications

Alternate Part Numbers Alternate Part Number MINO-00162X82590	Application Lawn and Garden Equipment, Turf Equipment, Golf Course Maintenance Equipment, Lift Trucks, Compact Utility Tractors	Brand Danfoss – Hydraulics	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Flow Rate 11-19 L/min (3-5 gal/min)\|Maximum pressure 140 bar (2,030 psi)\|Small turf care and utility vehicle applications	Flow Rate1 19 LPM	ICC Steering Control Unit (SCU)	Language English	Product Width 3.17	Special Features None	Sub Brand None	Supplier Part Number 291-1043-003	Product Weight 11.00 lbs

Product Questions & Answers (1)

Question by: Cody G on Jan 30, 2026, 6:19 PM

flow rate on this thing is listed as 11–19 L/min but the max attribute says 19 LPM, so is 19 really the top end it'll handle or is there some wiggle room above that?

Answer by: Customer Support on Feb 1, 2026, 12:18 PM

19 L/min is the ceiling on this valve, which works out to about 5 gallons per minute. The range listed reflects typical operating flow, and 19 LPM is where it tops out. Pushing beyond that isn't something this unit is rated for, so if your circuit runs hotter than that you'd be looking at the wrong valve for the job.
