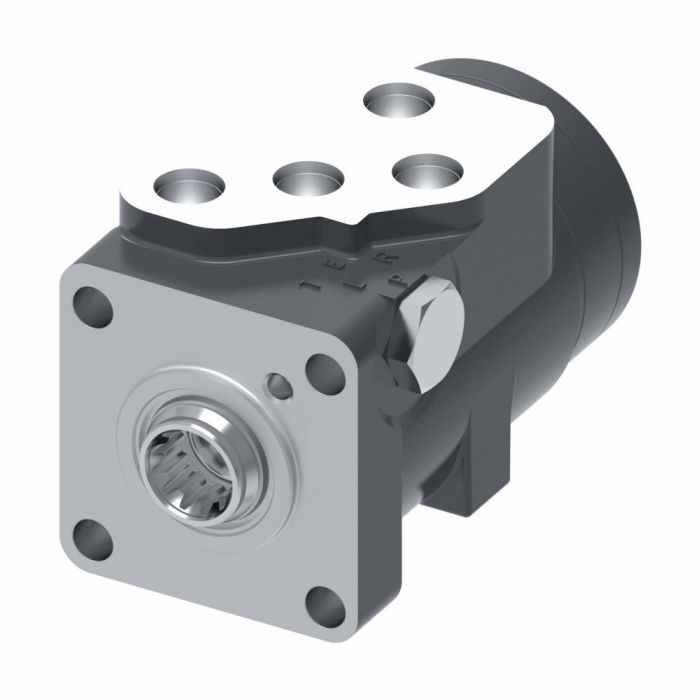

CHAR-LYNN STEERING UNIT

Description & Features

Designed for small turf care and compact utility vehicle applications, this Danfoss Power Solutions Char-Lynn Steering Unit delivers reliable steering control across a range of light-duty industrial and commercial equipment. Typical platforms include lawn and garden equipment, golf course maintenance machinery, lift trucks, and compact utility tractors.

The unit supports a flow rate up to 19 LPM (3–5 gal/min) and is rated to a maximum pressure of 140 bar (2,030 psi), making it well suited to the moderate hydraulic demands of turf and utility vehicle steering circuits. As part of the Danfoss Series 5 Steering Control Unit (SCU) lineup, it reflects the engineering standards associated with that product family.

SKU: 291-5005

Supplier Part Number (MPN): 291-5005-003

Specifications

Brand Danfoss	Additional Ports 9/16 in Plug-O EF on Port Face	Color Black	Design Code 3	Input Torque Standard	Load Circuit Non-Reaction	Mechanical Interface Internal Involute Spline, 12-Tooth, 16/32 Diametral Pitch, 30 deg Pressure Angle	Mounting Thread (4) M6x1 6H Mounting Face, (3) M8x1.25 6H Port Face, (4) 14.288 mm Dia Plug O-ring Port	Mounting Type Threaded	Neutral Circuit Open Center with Power Beyond	Paint and Packaging Black Paint	Return Pressure Rating 10	Series 5 Series	Valve Options Manual Steering Check Valve

Product Questions & Answers (1)

Question by: Dean H on Oct 18, 2025, 5:59 PM

What size flow rate does this steering unit handle?

Answer by: Customer Support on Oct 20, 2025, 6:34 AM

This Char-Lynn steering unit is designed to handle a flow rate up to 19 liters per minute. That translates to roughly 3 to 5 gallons per minute, so it's a good fit for smaller machines.
