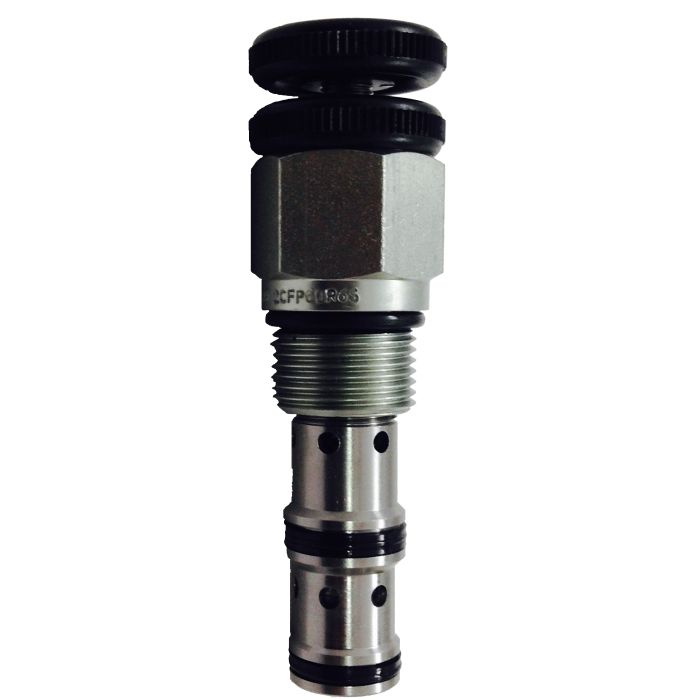

2CFP60 Series 3-Port Pressure Compensated Priority Flow Controls, Up To 5000 PSI & 24 GPM Inlet

Description & Features

Application	These valves are priority flow regulators. The flow (and actuator speed) will be largely independent of the load and the pressure conditions. If used to regulate flow from a fixed supply, for example a standard gear or piston pump, the valve will pass the required flow and any surplus flow will be diverted to the bypass port. The bypass flow may be used for a secondary circuit whether the secondary pressure requirement is higher or lower than the regulated pressure. The valve inlet pressure will be approximately 7 bar (100 psi) more than the regulated or bypass pressure, whichever is higher.
Cartridge	Model 2CFP60, sold separately.
Features	Cartridge construction gives versatility of application. A valve may be fitted into a line body, a custom designed Hydraulic Integrated Circuit or directly into a cylinder or other actuator. Leakproof adjust screw gives easy, accurate adjustment to required flow setting. Hardened and ground working parts give accurate flow control and long working life.
Housing	Cavity size CVA-27-04-0. Housing sold separately.
Maximum Flow Rate	Inlet: 24 GPM; Regulated Flow: 1 - 16 GPM
Maximum Operating Pressure	5000 PSI
Recommended Filtration	BS5540/4 Class 18/13 (25 micron nominal)
Temperature Range	–22°F to +194°F

Model Number	Part Number	Adjustable Range	Adjustment Style	Housing	Seal Material	Price	Action
2CFP60R6S 2CFP60 Series Flow Control	405AA00009A	1 - 16	Handknob adjustment	None	Nitrile

Question by: Glen D on Aug 27, 2025, 2:43 PM

How tight should I make the adjustment screw when I'm setting the flow in the field?

Answer by: Customer Support on Aug 29, 2025, 6:15 AM

Adjustment should be leakproof and accurate, allowing you to fine-tune the flow setting to your exact requirements in the field.
