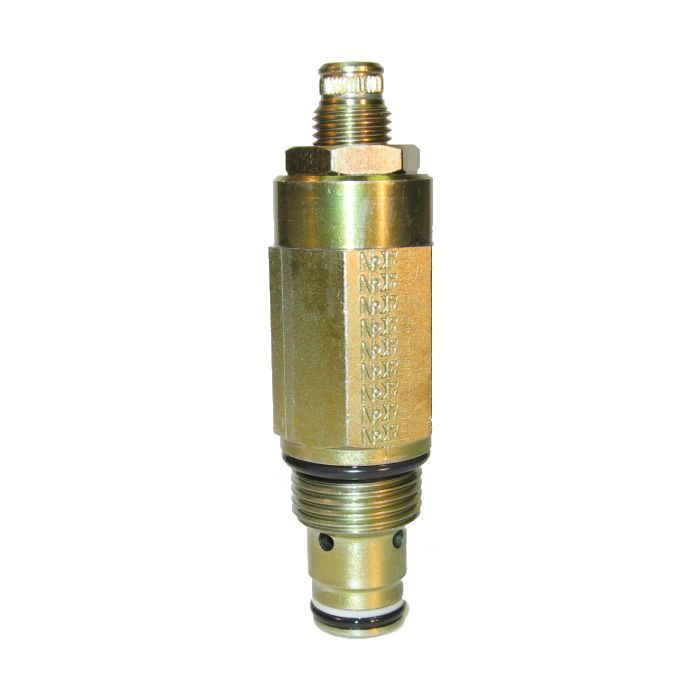

2CFR60 Series 2-Port Pressure Compensated Priority Flow Controls, Up To 5000 PSI & 16 GPM

Description & Features

Cartridge	Model 2CFRC60-*, sold separately.
Features	This is a two-port, restrictive flow regulator with a built in free flow check valve. Typical uses include the control of actuator speed by regulating the flow into or out of the actuator (meter-in or meter-out).
Housing	Cavity size A7447, sold separately, see
Maximum Flow Rate	16 GPM.
Maximum Operating Pressure	5000 PSI.
Operation	Flow into the inlet of the valve passes through the adjustable orifice and out of the regulated port. The inbuilt check allows free return of flow (2 to 1).
Recommended Filtration	Cleanliness Level 18/13 or better.
Temperature Range	–22° to +194°F

Model Number	Part Number	Flow Range	Adjustment Style	Housing	Seal Material	Price	Action
2CFRC60P6S 2CFR60 Series Flow Control	405AA00054A	1.6 - 16	Screw	None	Nitrile
