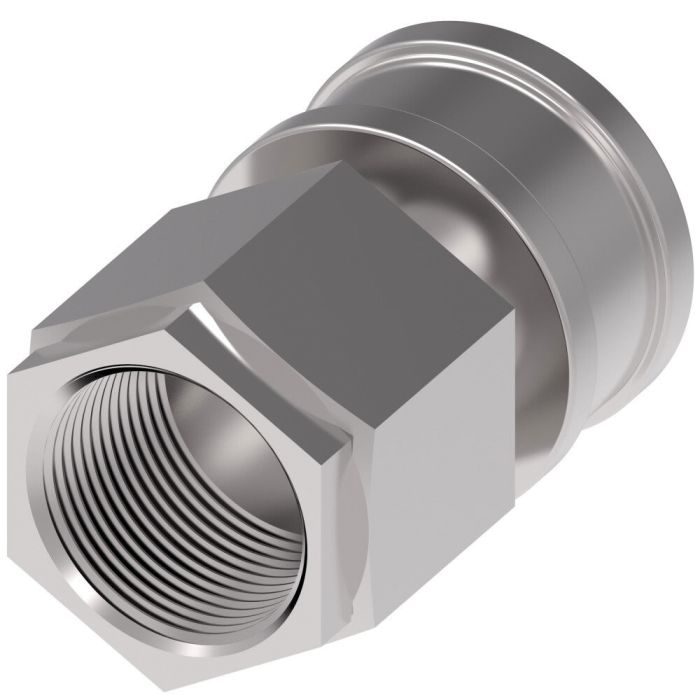

This Danfoss / Eaton Cplng HK Series quick disconnect coupling socket is suitable for a wide range of applications including agriculture, construction, fluid transfer, and general industry. It is also compatible with hydraulic tools, transportation, military, law enforcement/rescue, chemical, oil and gas, consumer products, HVAC, food and beverage, trucks, aerospace, and medical applications.
Featuring quick connect and disconnect functionality, this female half coupling requires no special tools for installation. The carbon steel construction ensures durability, while the Buna-N seal material provides reliable sealing. This 2-way valve type coupling exceeds ISO 16028 operating pressures. It has a 1/4" port size, female NPTF end type 2, and a female push-to-connect end type 1. This coupling has a 3 GPM flow rate and operates in temperatures as low as -40 degrees.
SKU: 2H16NV
Supplier Part Number (MPN): 2H16NV
|
Alternate Part Numbers
MINO-00925X09950
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.25
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
3 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1/4
|
Product Material
Carbon Steel
|
Product Width
1.14
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
2H16NV
|
Valve Type
2 way
|
Product Weight
0.27 lbs
|
