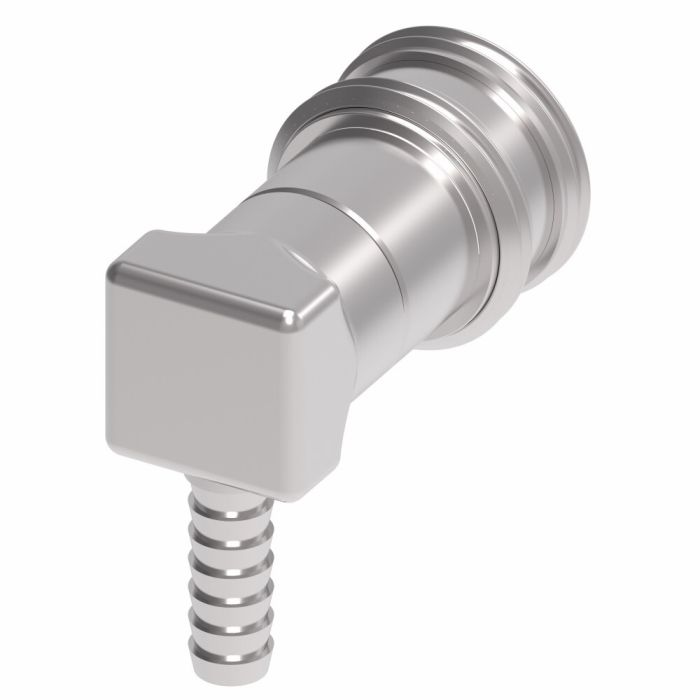

Designed for demanding fluid handling environments, the Danfoss / Eaton Socket is a female half quick disconnect coupling from the Hansen 2HKIG/2HKIL series. Constructed from stainless steel with a Buna-N seal, it suits applications in chemical processing, food and beverage, military, and aerospace sectors where material compatibility and durability are priorities.
The push-to-connect female end pairs with a 7/16 UNF male connection, with a ball lock internal mechanism providing a secure, leak-resistant seal. Coupling and decoupling require no special tools, and the design exceeds ISO 16028 operating pressure standards. Rated for a minimum working temperature of -40°F, this socket maintains reliable performance across a wide operating range. Flow rate is rated at 2.2 gallons per minute.
SKU: 2HIGLLRA720
Supplier Part Number (MPN): 2HIGLLRA720
|
Alternate Part Numbers
MINO-00015X05207
|
Application
Chemical, Food and Beverage, Military, Aerospace
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13556
|
End Size 2
0.44
|
End Type 1
Push to Connect
|
End Type 2
UNF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
2.2 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
Stainless Steel
|
Product Width
1.06
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
2HIGLLRA720
|
Product Weight
0.23 lbs
|
