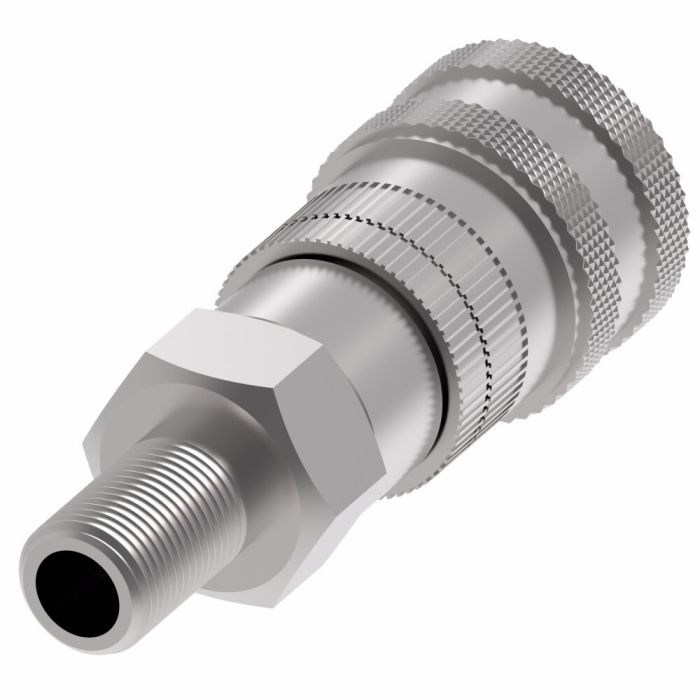

This stainless steel, female half quick disconnect coupling is part of the Danfoss / Eaton Hansen series. Designed for applications including chemical, food and beverage, military, and aerospace, it features a ball lock internal connection type and Buna-N seal material.
The coupling offers quick connect and disconnect functionality without the need for special tools. It exceeds ISO 16028 operating pressures and has a minimum working temperature of -40 degrees. It has a flow rate of 2.2 gallons per minute and a torque rating of 15-20 lb/ft. This Hansen coupling features a push to connect end type with a 0.375 MPT end size.
SKU: 2HL20
Supplier Part Number (MPN): 2HL20
|
Alternate Part Numbers
MINO-00402X01991
|
Application
Chemical, Food and Beverage, Military, Aerospace
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13556
|
End Size 2
0.38
|
End Type 1
Push to Connect
|
End Type 2
MPT
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
2.2 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
Stainless Steel
|
Product Width
1
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
2HL20
|
Torque Rating
15-20 lb/ft
|
Torque Rating
15-20 lb/ft
|
Product Weight
0.24 lbs
|
