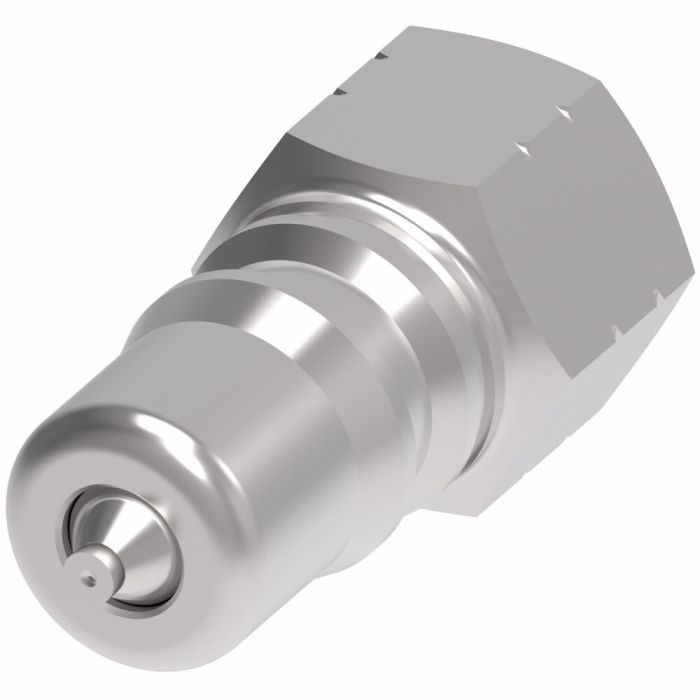

Designed for quick connection and disconnection without special tools, this carbon steel male plug half is part of the Danfoss / Eaton Hansen HK Series and conforms to ISO 7241-1 Series B. The ball lock internal connection mechanism ensures a secure, reliable coupling engagement across a wide range of industrial and mobile hydraulic applications.
The plug features a 1/4-inch port with a Push to Connect end on the male side and a 1/4-inch NPTF female port on the opposing end. FKM seals support compatibility with a broad range of hydraulic fluids, and the 2-way valve configuration maintains flow control on both connect and disconnect. Rated for a flow of up to 3 gallons per minute, this Danfoss / Eaton Male/Plug Half is suited for use in agriculture, construction, oil and gas, aerospace, fluid transfer, and a range of other industrial sectors. Operating temperature starts at -15°F minimum.
Applications span from hydraulic tooling and transportation equipment to military, medical, and food and beverage environments, reflecting the broad fluid and pressure compatibility of the Hansen HK Series design.
SKU: 2K16143
Supplier Part Number (MPN): 2K16143
|
Alternate Part Numbers
MINO-00015X05235
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.25
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
3 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-15
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1/4
|
Product Material
Carbon Steel
|
Product Width
0.87
|
Safety locking Mechanism
None
|
Seal Material
FKM
|
Sub Brand
Hansen
|
Supplier Part Number
2K16143
|
Valve Type
2 way
|
Product Weight
0.08 lbs
|
