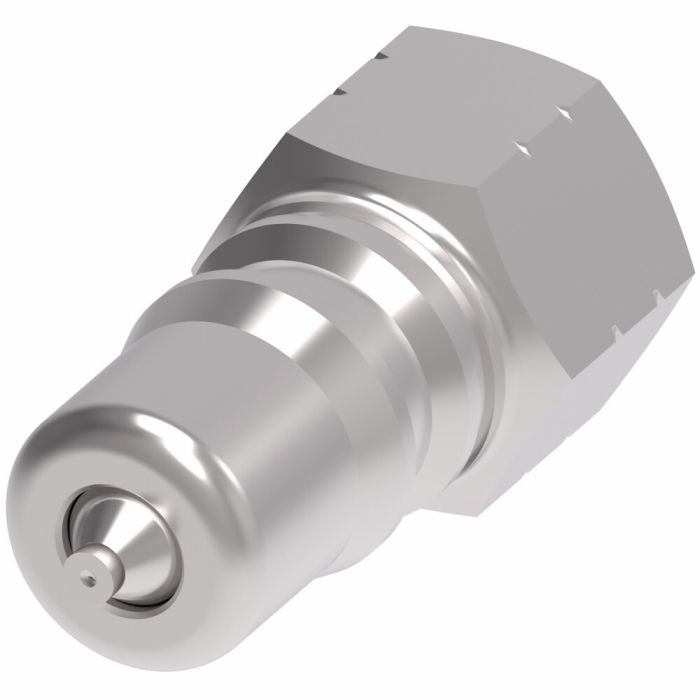

This carbon steel quick disconnect coupling is part of the Danfoss / Eaton Cplng HK Series, designed for a variety of applications including agriculture, construction, fluid transfer, and general industrial use. It is also suitable for more specialized uses such as hydraulic tools, transportation, military, law enforcement/rescue, chemical, oil and gas, consumer products, HVAC, food and beverage, trucks, aerospace, and medical applications.
The coupling features a 1/4" port size, a ball lock internal connection type, and Buna-N seals. This male half coupling is designed for quick connect and disconnect with no special tools needed. It adheres to ISO 7241-1 Series B standards and exceeds ISO 16028 operating pressures. The end connections include a male push-to-connect end and a 0.25" female NPTF end. It has a 3 gallons per minute flow rate and can function in temperatures as low as -40 degrees Fahrenheit.
SKU: 2K16VAA
Supplier Part Number (MPN): 2K16VAA
|
Alternate Part Numbers
MINO-00015X05261
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.25
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
3 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1/4
|
Product Material
Carbon Steel
|
Product Width
0.87
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
2K16VAA
|
Valve Type
1 way
|
Product Weight
0.08 lbs
|
